Manual Tilting Adjustable Floor Standing Premium Second-Generation Single Row Slatted Bed Base
Product Details
Product Details
Our Adjustable Floor Standing Slatted Bed Bases are Designed and Manufactured in-house in our Workshop in London, UK.
This floor standing bed base is designed to use as a bed or to sit within another bed frame to support the mattress.
Our Single Row Adjustable Bed Bases are ideal for one sleeper. Therefeor perfect to use within a Small Single 2ft 6 and Single 3ft Bed Frame We are also able to customise the width of the bed base on request.

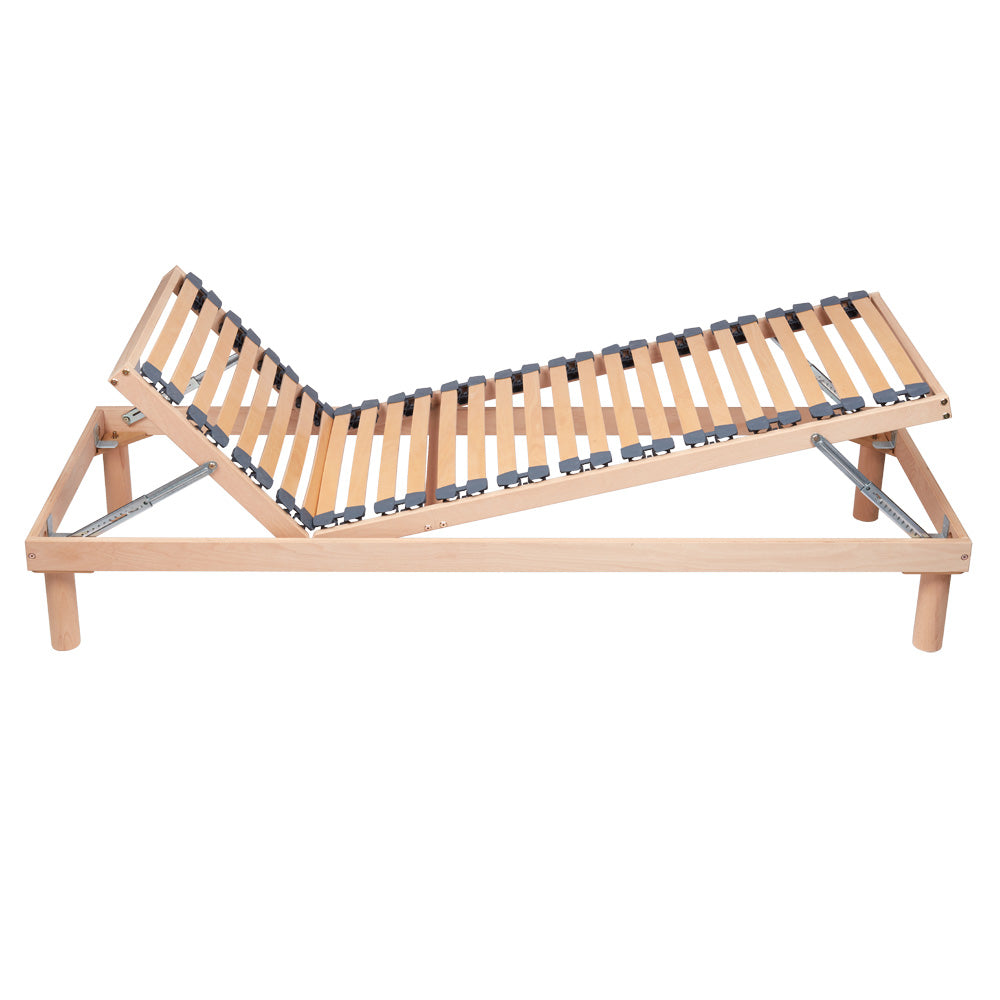

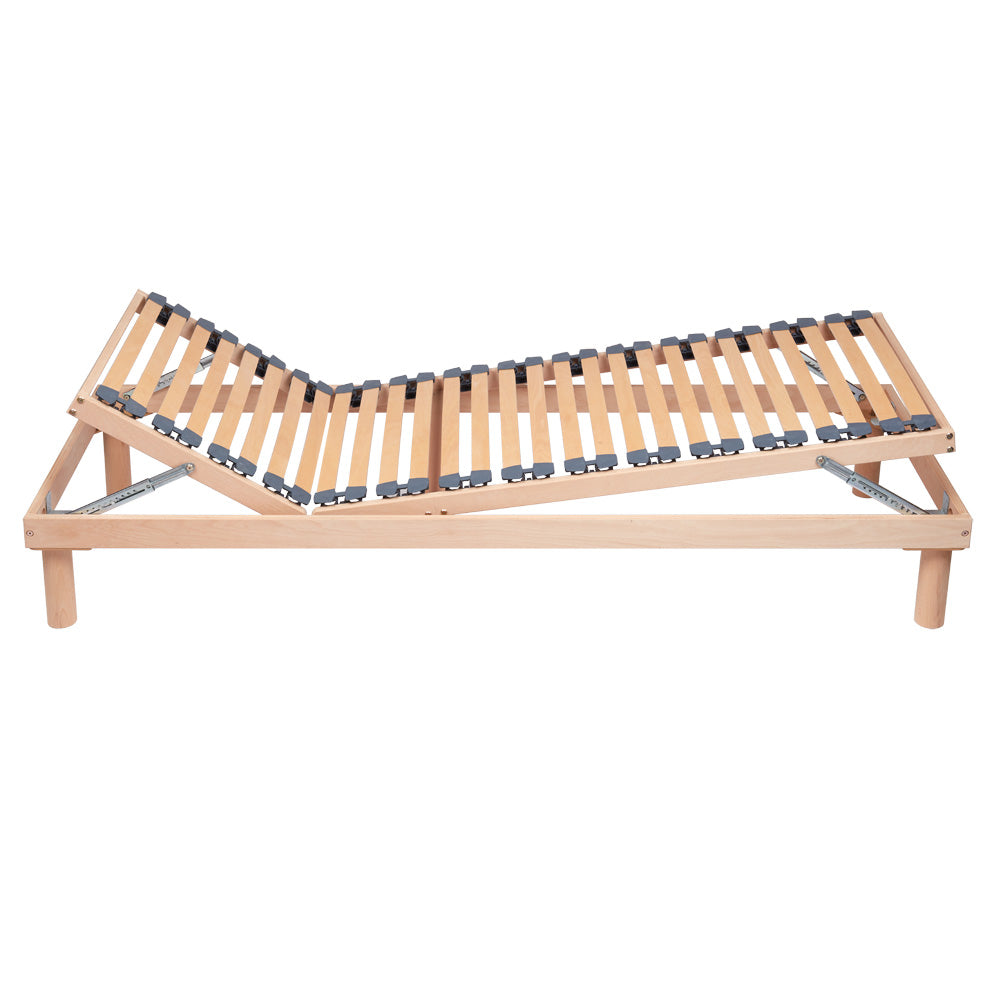

They have a Dual Tilting System allowing you to raise both the Head and Foot end on the Slatted Bed Base. We use a 10 Position system on both the head and foot end; allowing you to tilt the bed bases to your preferred position.
These Adjustable Slatted Bed Bases are ideal for comfort/ relaxation and help with many medical conditions.
Our Single Row Slatted Bed Bases are designed for One Sleepers and are suitable for the following bed sizes:
- Small Single Beds 2ft 6
- Single Beds 3ft
Technical Information:
Width Available - We offer standard UK and European Bed Sizes however, we are also able to offer a custom service
Length - The offer two standard Lengths
Height - Approximately 95mm (plus legs or casters)
Gap in between Slats - Approximately 25mm
Fixing for Bed Legs or Castors - M10 threaded bar required
Optional Extras
Bed Legs/ Feet
We can manufacture custom Solid Beech legs in various styles and height
Optional: Adjustable slat tension in the lumbar region
Second Generation adjustable tensions adjusters are placed in the lumber region to further improve your comfort level. These are also known as “rigidity adjusters”. There are three beech sprung slats per double slat holder with two second generation sliding tension adjusters. These tension adjusters in the lumber region, allow the sleeper to manually adjust the firmness of the bed in the lumbar region to their preference. Another added benefit is that you can adjust the tension independently from your partner.
10mm and 12mm sprung bed slats are not compatible with lumbar adjusters, so this option will not appear during the buying process.
Optional: Shoulder Zone Components
Our Special Shoulder Zone Components are a silent system, which is spring free meaning it is noise free. These components can rotate on both sides and are able to be pushed down up to 23mm including the rotation. This will dramatically improve comfort and reduce pressure in the shoulder region.
All our frame structures are manufactured from either Beech Ply Multiplex or Solid Beech. We only use Beech Sprung bed slats on all of our bed bases; these premium materials are undisputedly the preferred material in the industry.
All our bed bases are also connected together via Furniture Connector Bolts and Metal Cross Dowels which is the strongest and most robust connection. It far exceeds the connecting systems used by our competitors.
