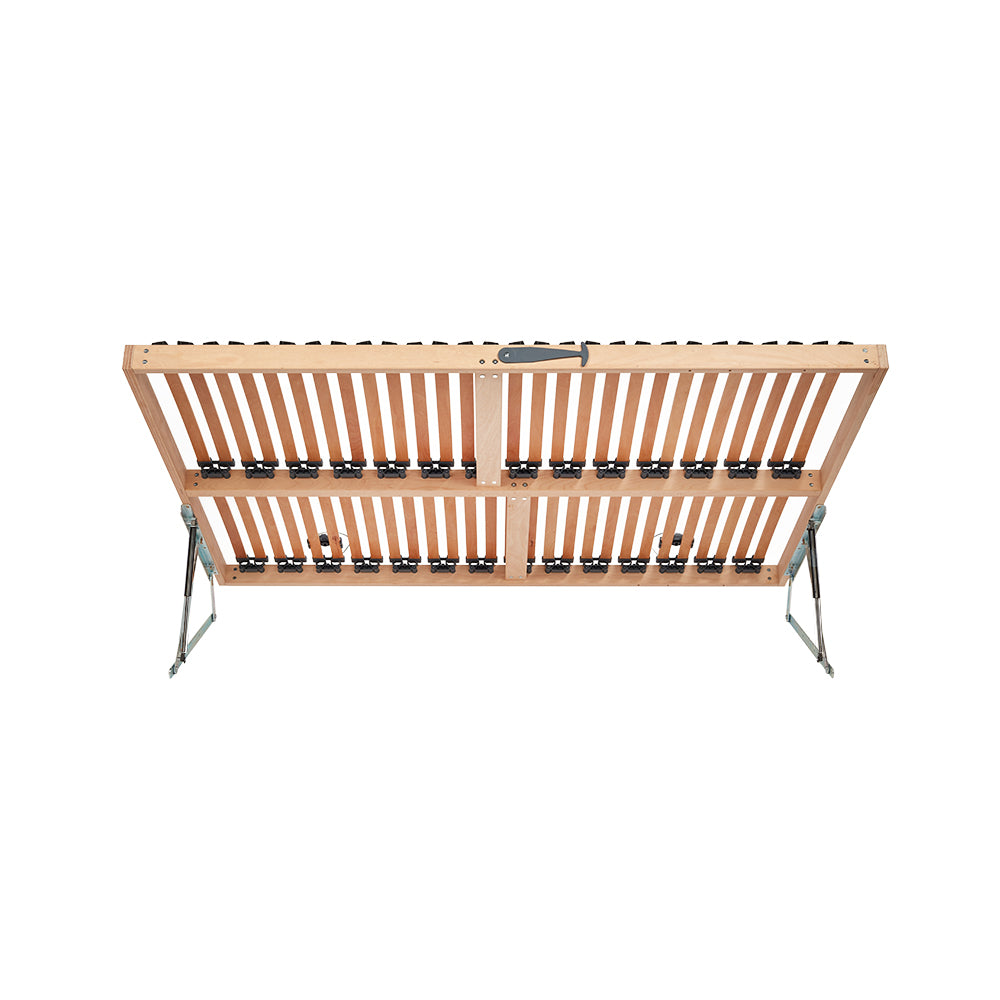

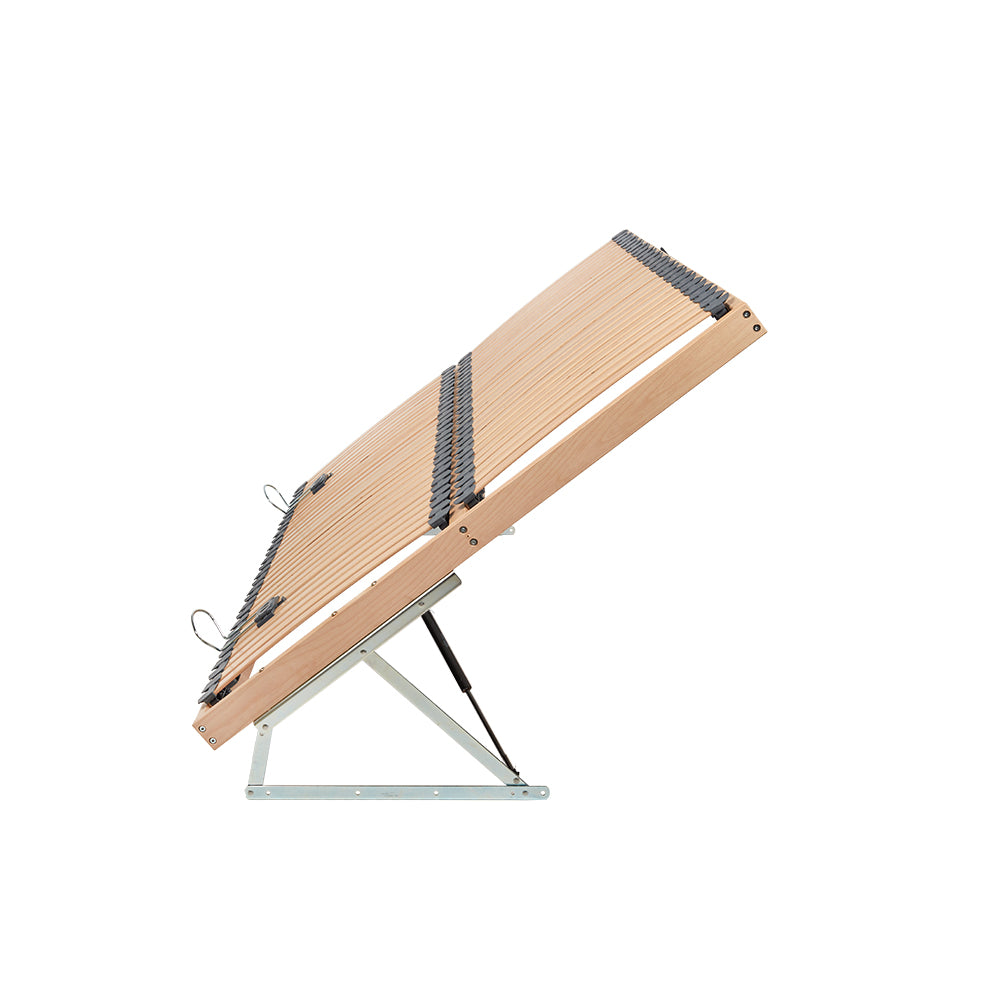

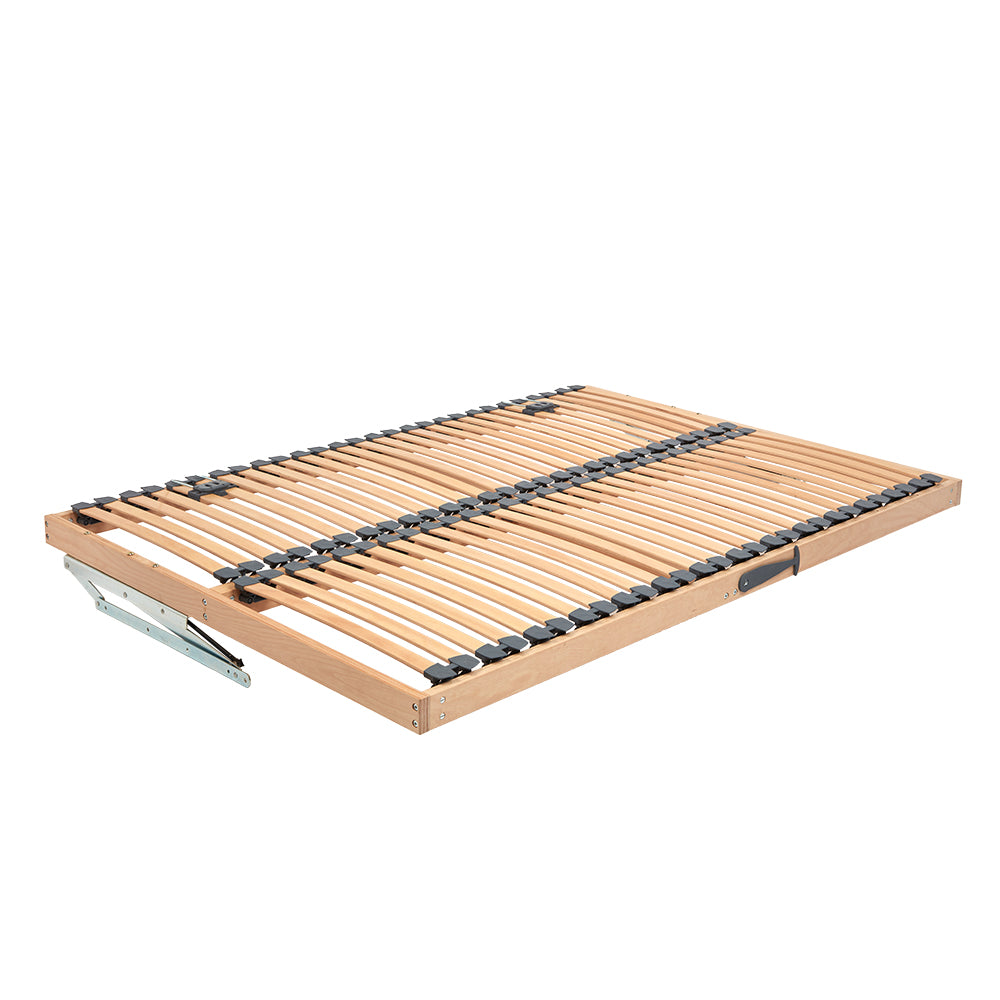

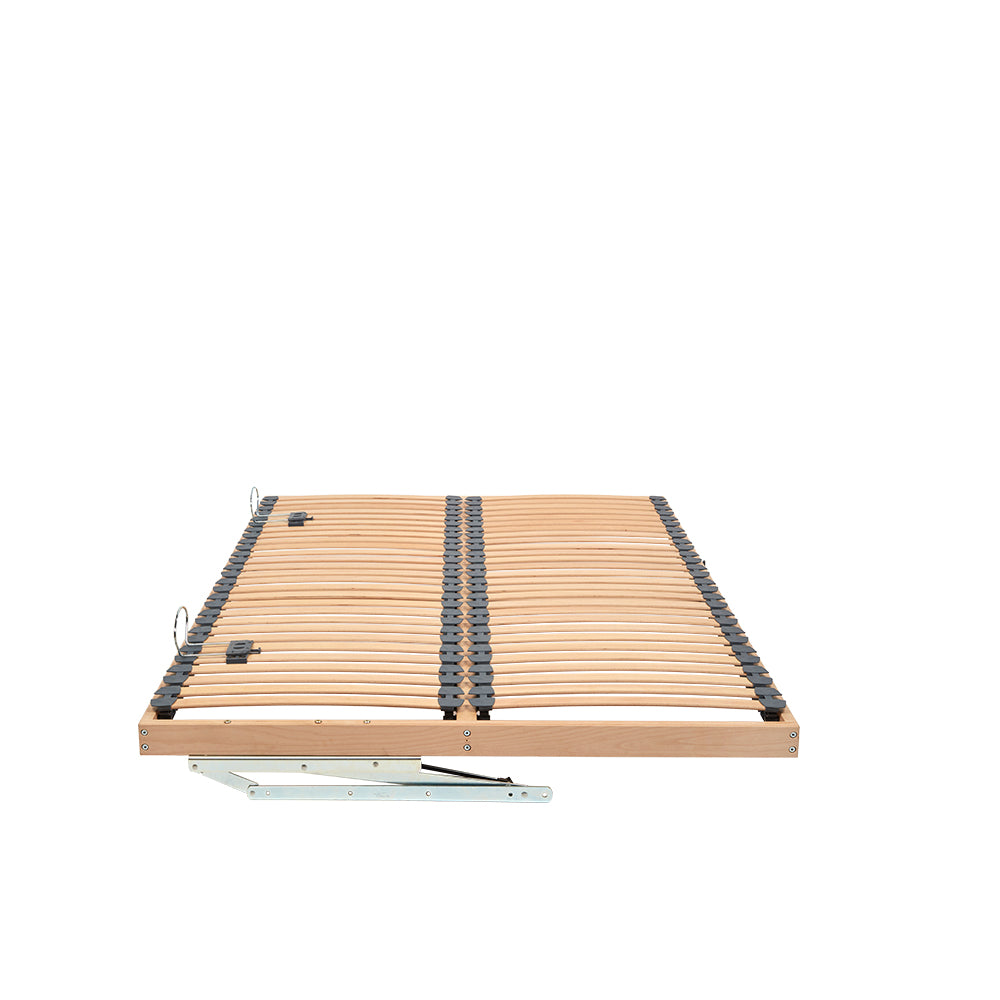

Premium Second-Generation Ottoman Double Row Wooden Slatted Bed Base Kit - Side Opening

Custom Double Row Wooden Slatted Bed Base Kit - Side Opening

Our Ottoman Slatted Bed Bases are manufactured in house by our in-house joinery team and is Manufactured to Order. This Product is ideal for trade customers or End Users wishing to manufacture a new ottoman bed frame. We do NOT recommend these to use on existing bed frames

We only use the highest quality components from specialist manufacturers; ensuring our finished product is built to last and made to a high specification. This Ottoman Slatted Bed Bases are designed to sit within your bed frame

This Slatted Bed Base is made to the same specification as our bestselling Second Generation Bed Base.

These Double Row Ottoman Bed Bases are idea for the following bed sizes
- Small Double 4ft
- Double 4ft 6
- European Double 140cm
- King Size 5ft
- European King Size 160cm
- Super King 6ft

We also offer with this Ottoman Kit that is End Opening

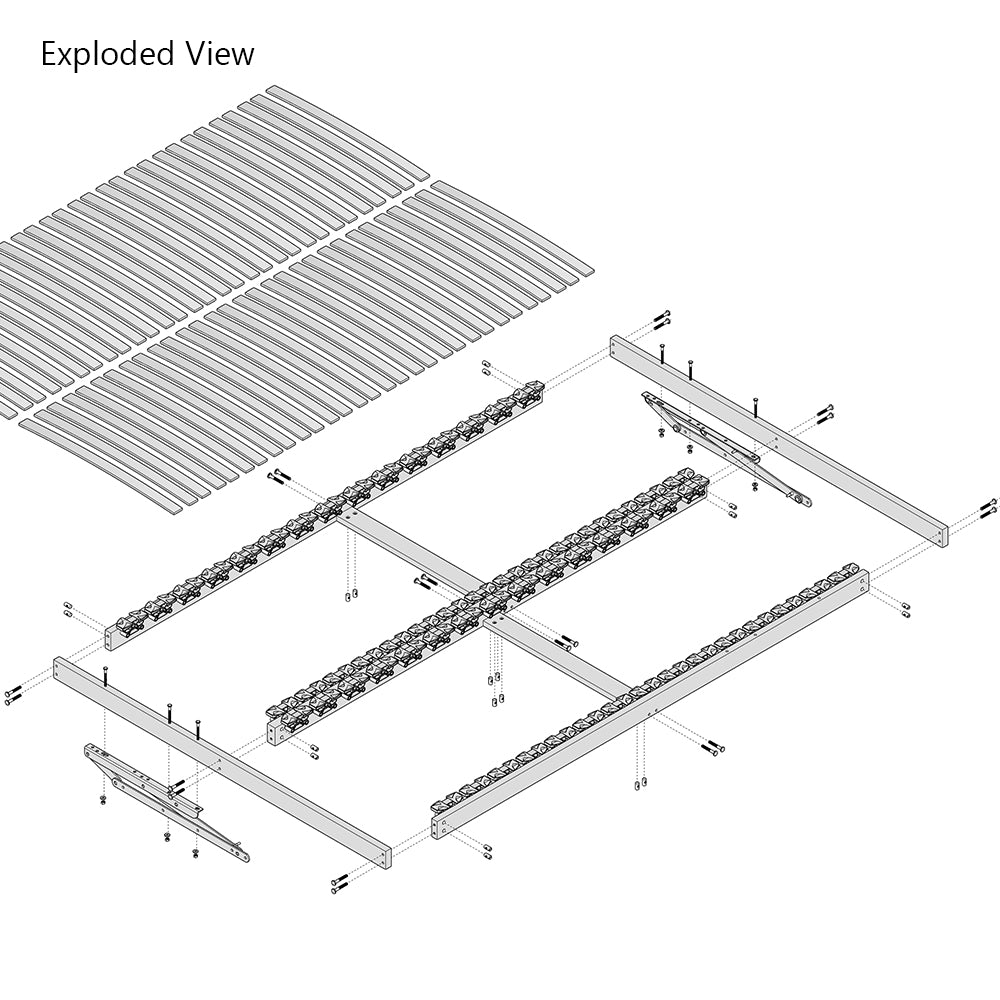

Our Single Row Ottoman Kit Consist of

• Double Row Ottoman Slatted Bed Bases with 56/ 60 Beech Sprung Bed Slats

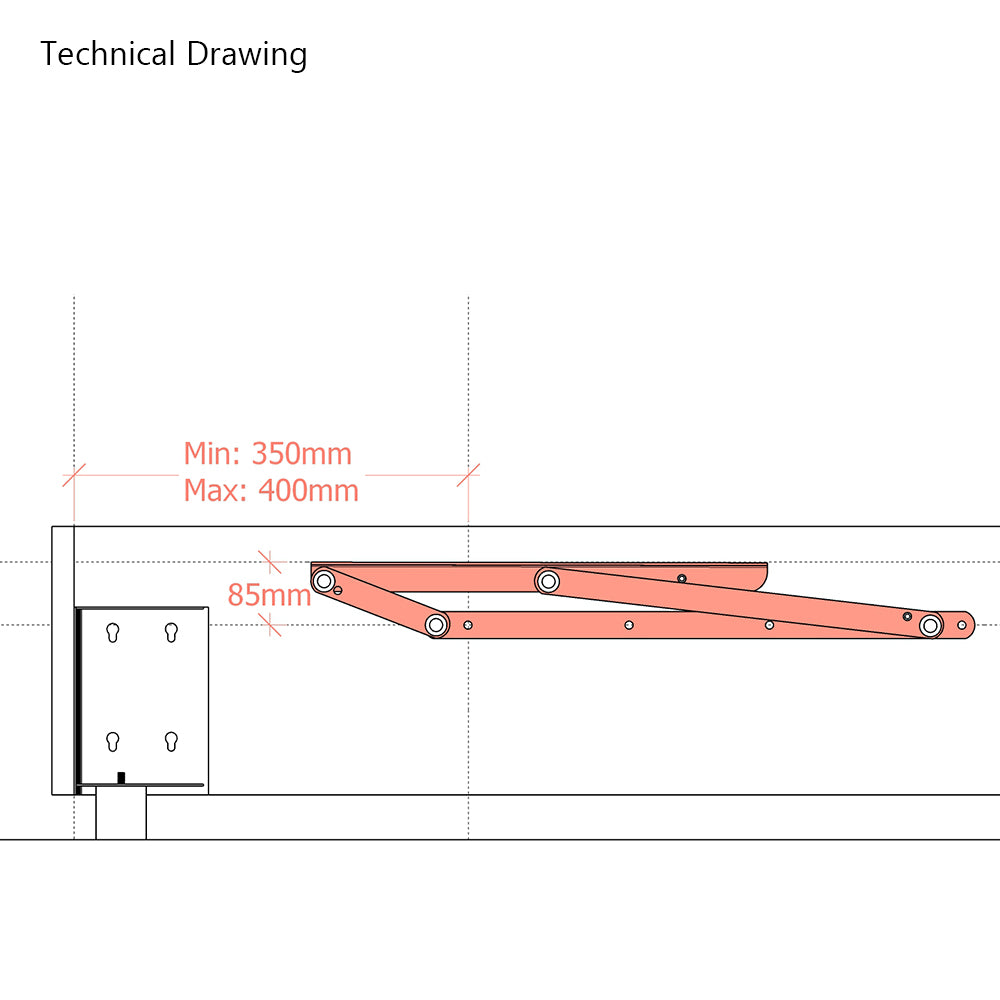

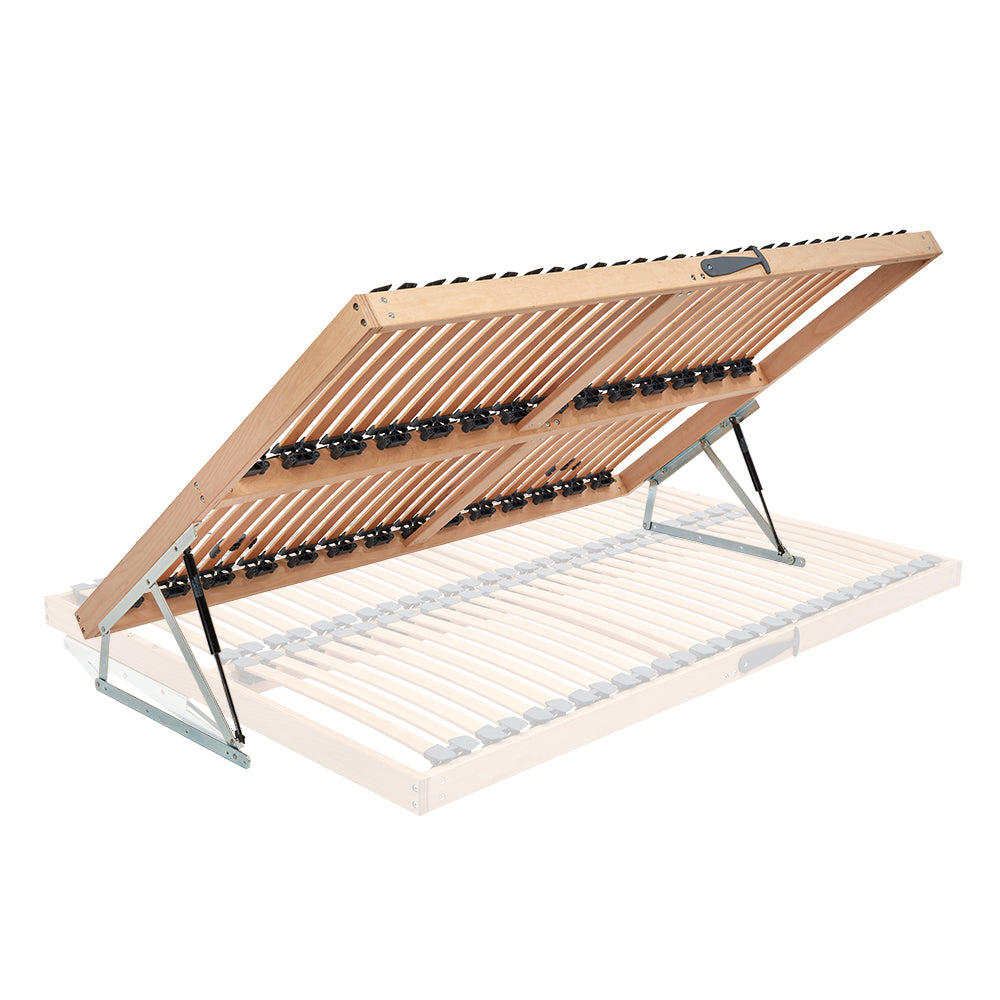

• Pair of Premium Ottoman Hinges with 2 Gas Struts

• Two Side Mattress Stopper

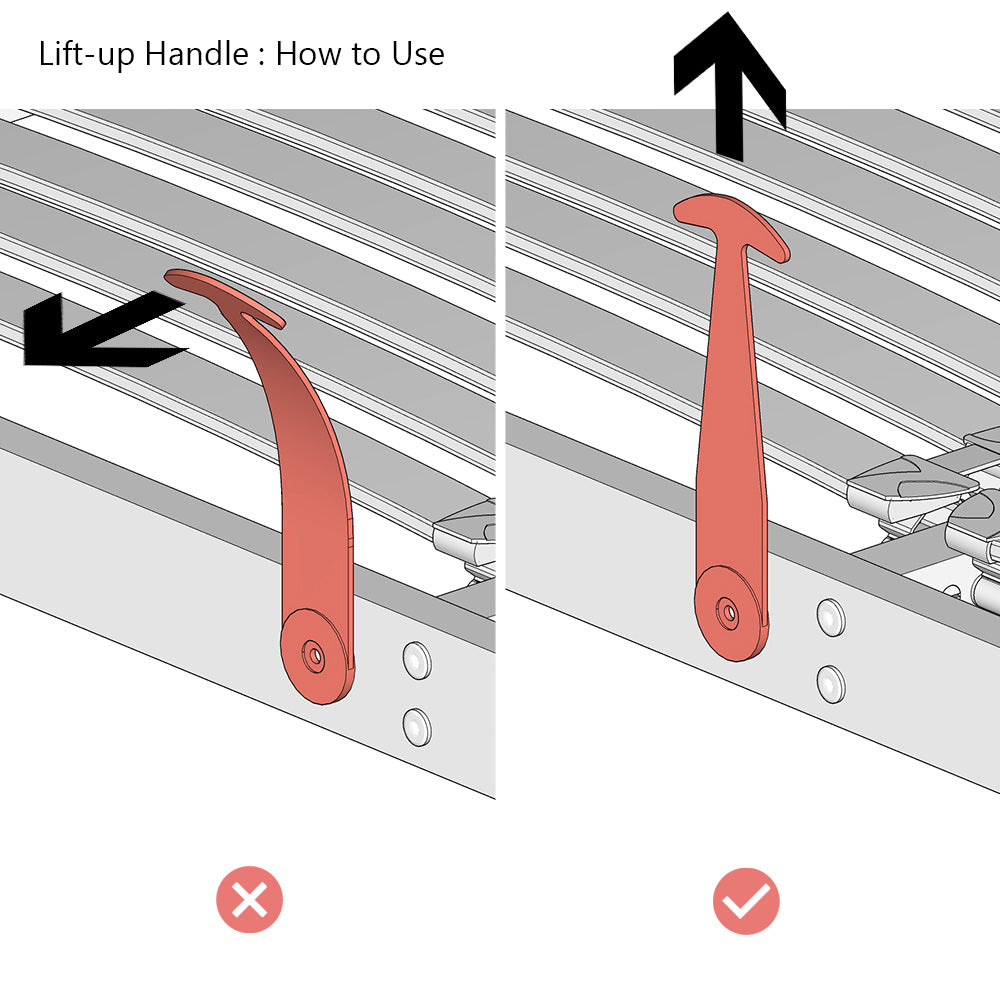

• Ottoman Handle

• Furniture Connector Bolts x 6

• M6 Washers x 6

• M6 Locking Nuts x 6

Bed Base Specification

• 56 or 60 Quality Beech Sprung Bed Slats (38mm x 8mm); depending on Length

• 70mm by 25mm Beech Multiplex Ply frame

• Second Generation Twin Pocket Slat Holders, which are doweled into the rails using Pegs to add strength and durability

• Height of Bed Bases - 90mm

• Gap Between the Slats - 25mm

Optional

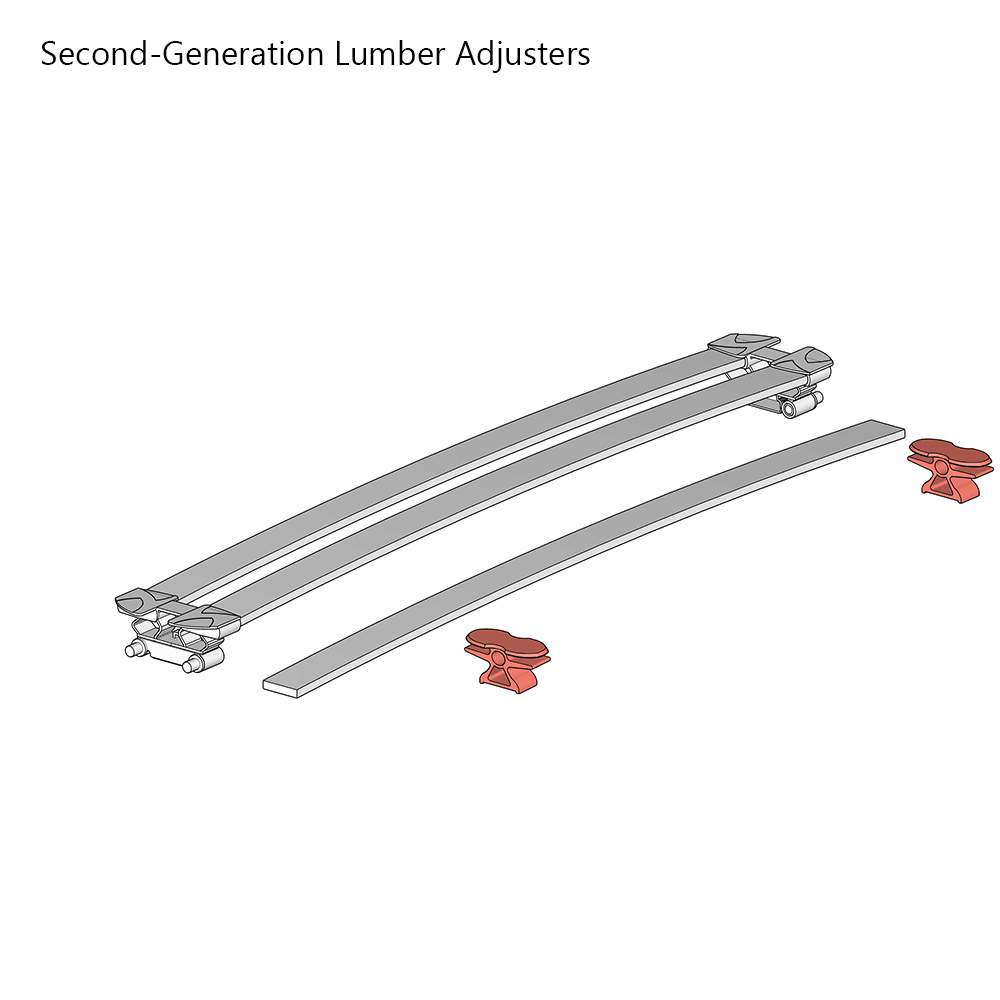

• Lumber Adjusters

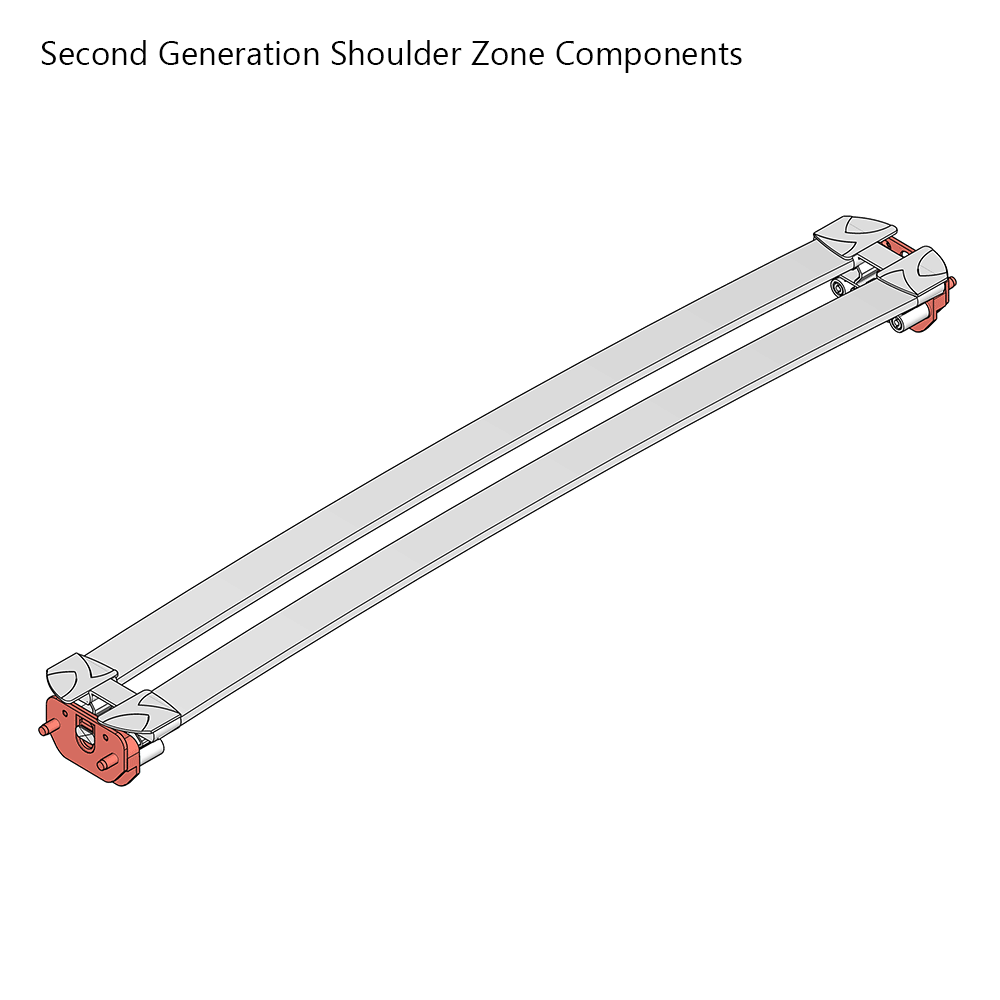

• Shoulder Zone Components

Dimension

Small Double 4ft - 1200mm x 1900mm
Double 4ft 6 - 1350mm x 1900mm
European Double 140cm - 1400mm x 2000mm
King Size 5ft - 1500mm x 2000mm
European King Size 160cm - 1600mm x 2000mm
Super King 6ft - 1800mm x 2000mm

We are also able to customise the  width of your Bed Bases (Available in 1900mm or 2000mm)

Bed Frame

Bed Frame Requirements

Internal Bed Frame needs to be 20mm bigger than the bed base

Custom Size Guidance

Many customers would like a bespoke service. They may be limited to space in the room and want to manufacture the external bed frame a certain size.

We can help with this, the calculation are performed backwards, please see example below.

Example 1 - if you already know the Internal Bed Size

Internal Width (minus) 20mm

1450mm - 20mm = 1430mm

Internal Length (minus) 20mm

1950mm - 20mm = 1930mm

Order 1430mm x 1930mm

Example 2 - Designing and Building a new bed frame

External Bed Size: W:1500mm x L:2000mm

Rails of bed frame: 25mm (50mm in total)

Internal sizes will therefore be W:1450mm x L:1950mm

You will need to minus 20mm off the length and width to work out what size Slatted Bed Bases you will be required to order.

The internal sizes for the above example would be as follows:

W: 1450mm - 20mm = 1430mm

L: 1950mm - 20mm = 1930mm

Order W:1430mm x L1930mm

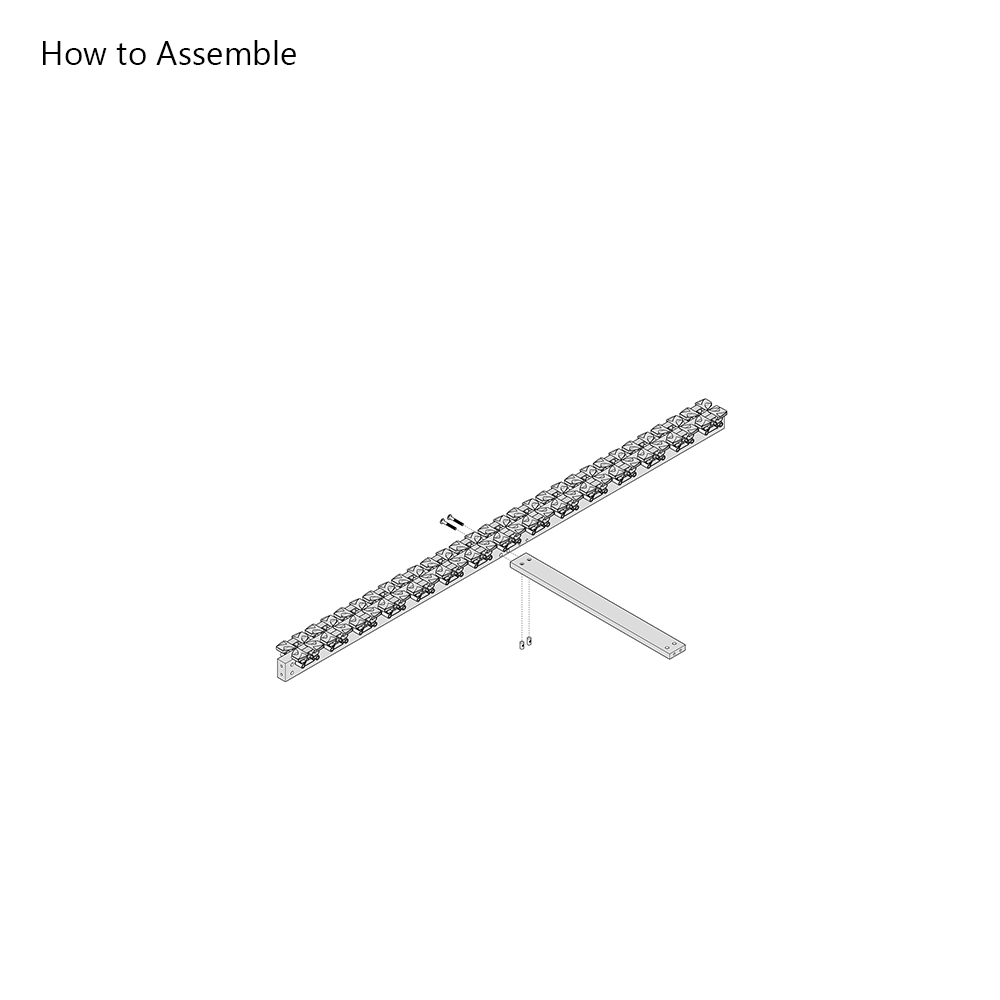

Assembly

Our Double Row Ottoman Slatted Bed Bases are ready for self Assembly

You will need to attach the Ottoman Hinges to the bed base; these will be Pre-drilled in our Workshop. Bolts, Washers and Nuts will be Provided.

We use M8 Furniture Connector bolts and M8 Cross Dowels for an extremely strong connection

This is ideal for larger bed sizes due to access; as you can assemble the ottoman slatted bed bases in the room
