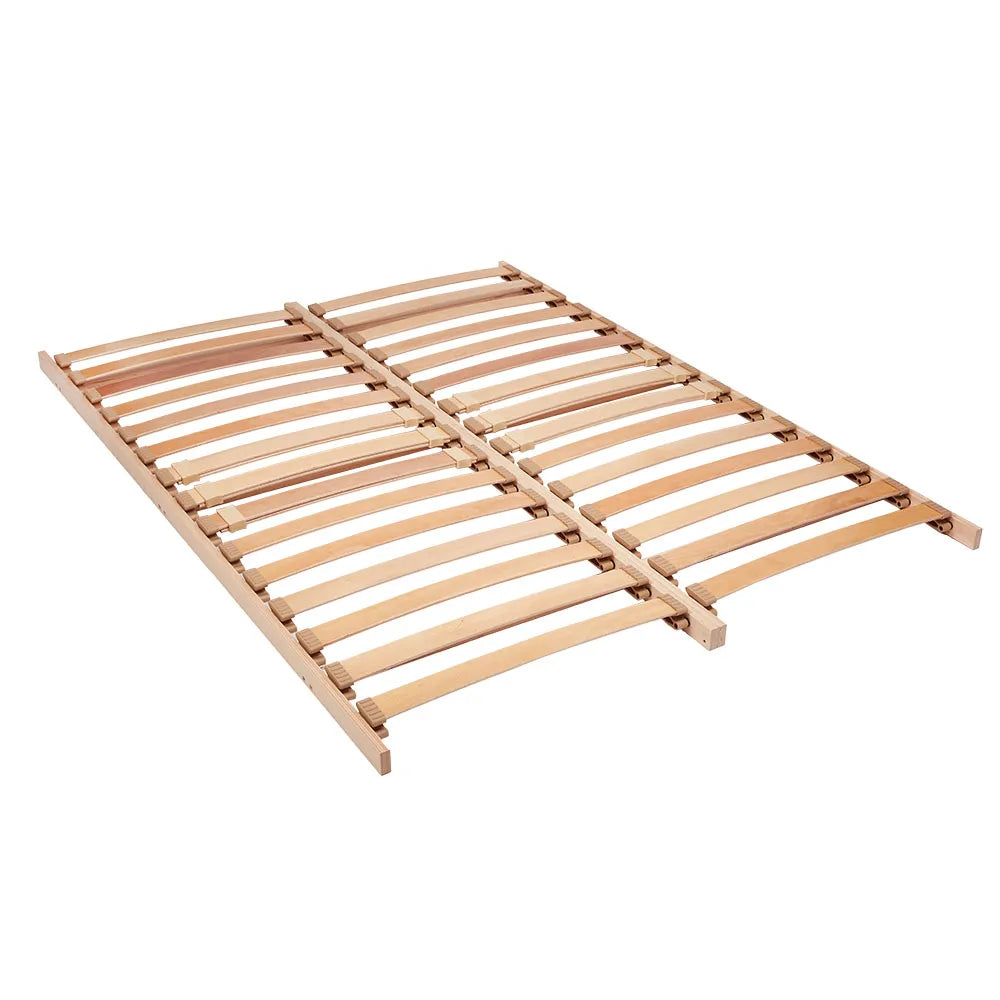

Standard Drop-In Slatted Bed Base with Beech Sprung Bed Slats
Our Standard Slatted Bed Base is Designed and Manufacture in-house by our Master Bed Makers. We only use the highest quality components from specialist manufacturers; ensuring our finished product is built to last.
This Drop-In Slatted Bed Bases are designed to sit within your bed frame and is manufacuted order at you specified width and length.

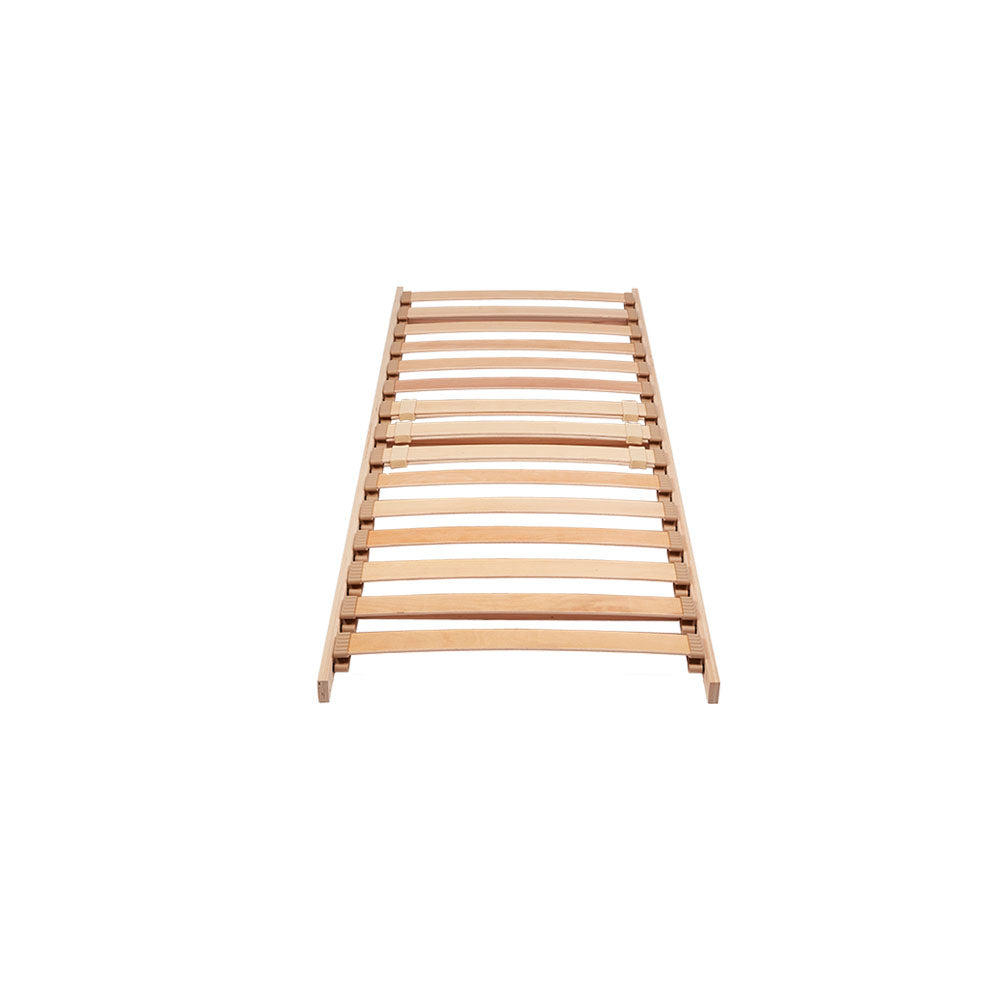

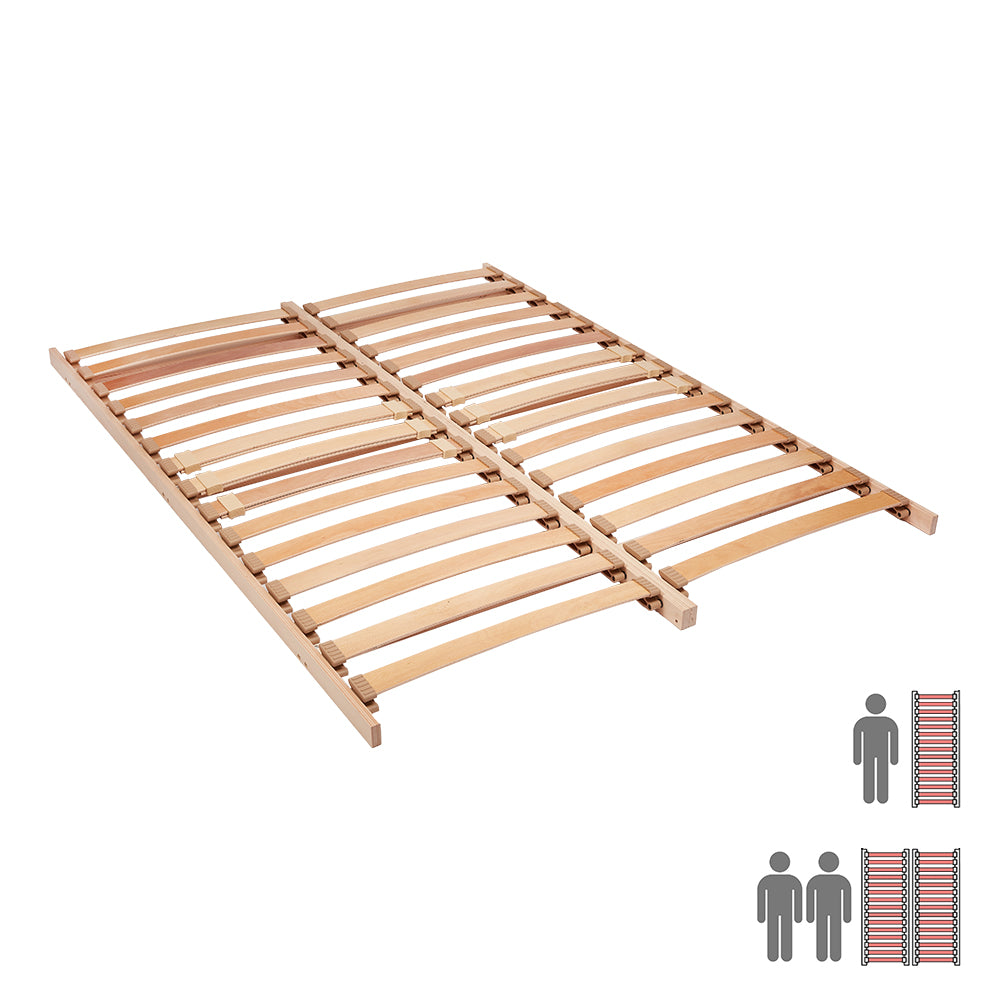

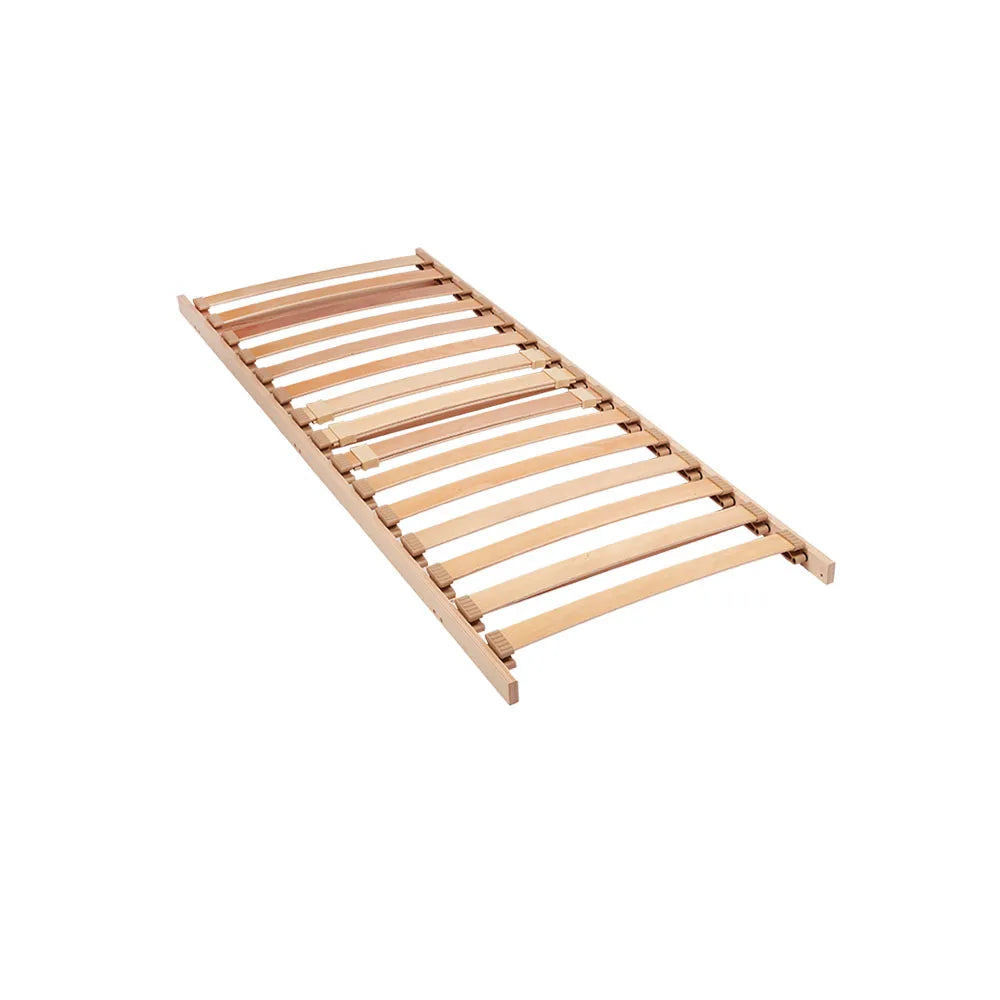

Our Single Row Slatted Bed Bases are designed for One Sleepers and are suitable for the following bed sizes:
- Small Single Beds 2ft 6
- Single Beds 3ft
- Small Double Beds 4ft
Our Double Row Slatted Bed Bases are designed for Two Sleepers are suitable for the following Bed Sizes:
- Small Double Beds 4ft
- Double Beds 4ft 6
- European Double Beds 140cm
- King Size Bed 5ft
- European King Size Beds 160cm
- Super King Beds 6ft
- Emperor bed

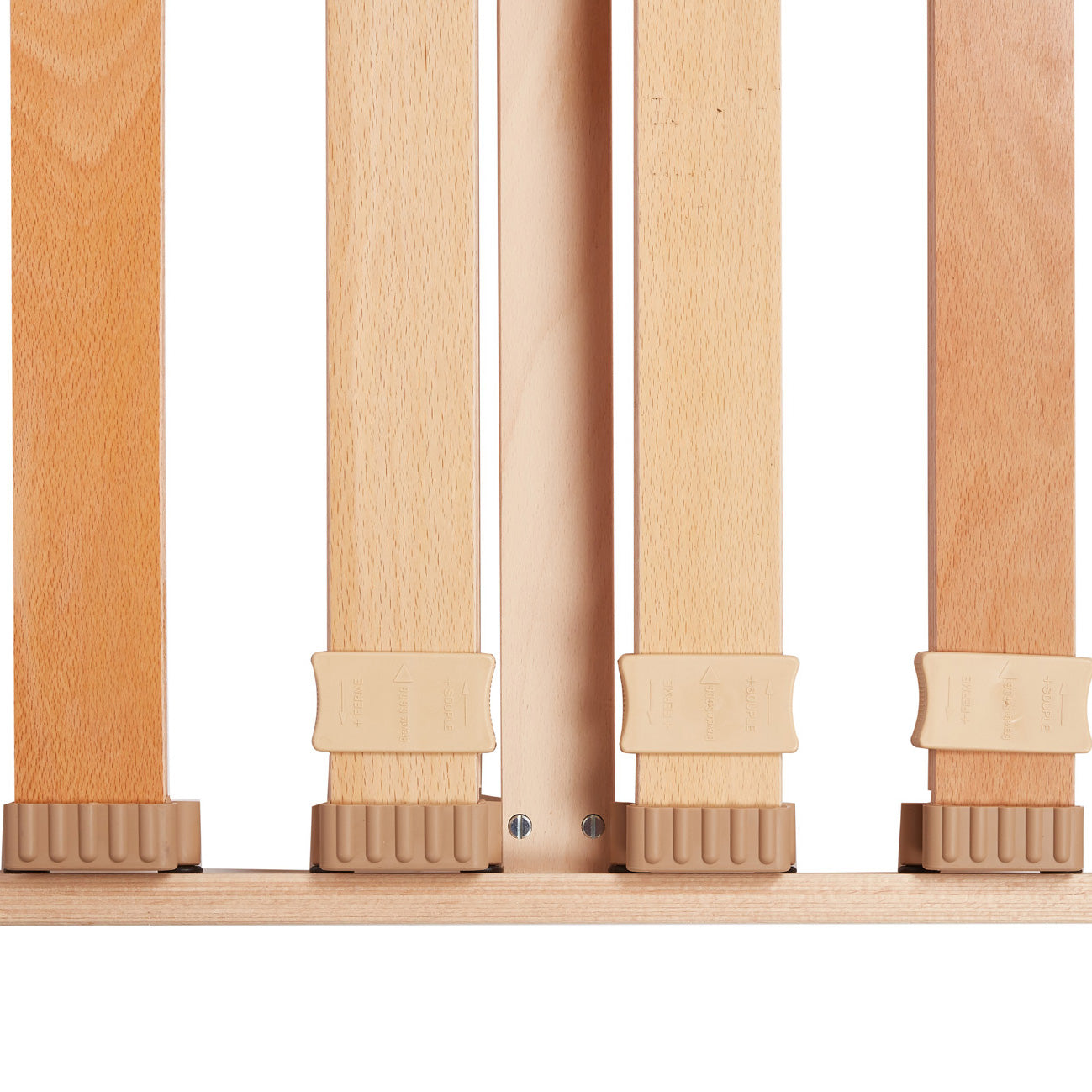

Our Standard Generation Bed Base consist of
- 15 Quality Beech Sprung Bed Slats (63mm x 8mm) for each sleeper - May vary depending on the length specified
- 50mm by 20mm Beech Multiplex Ply frame

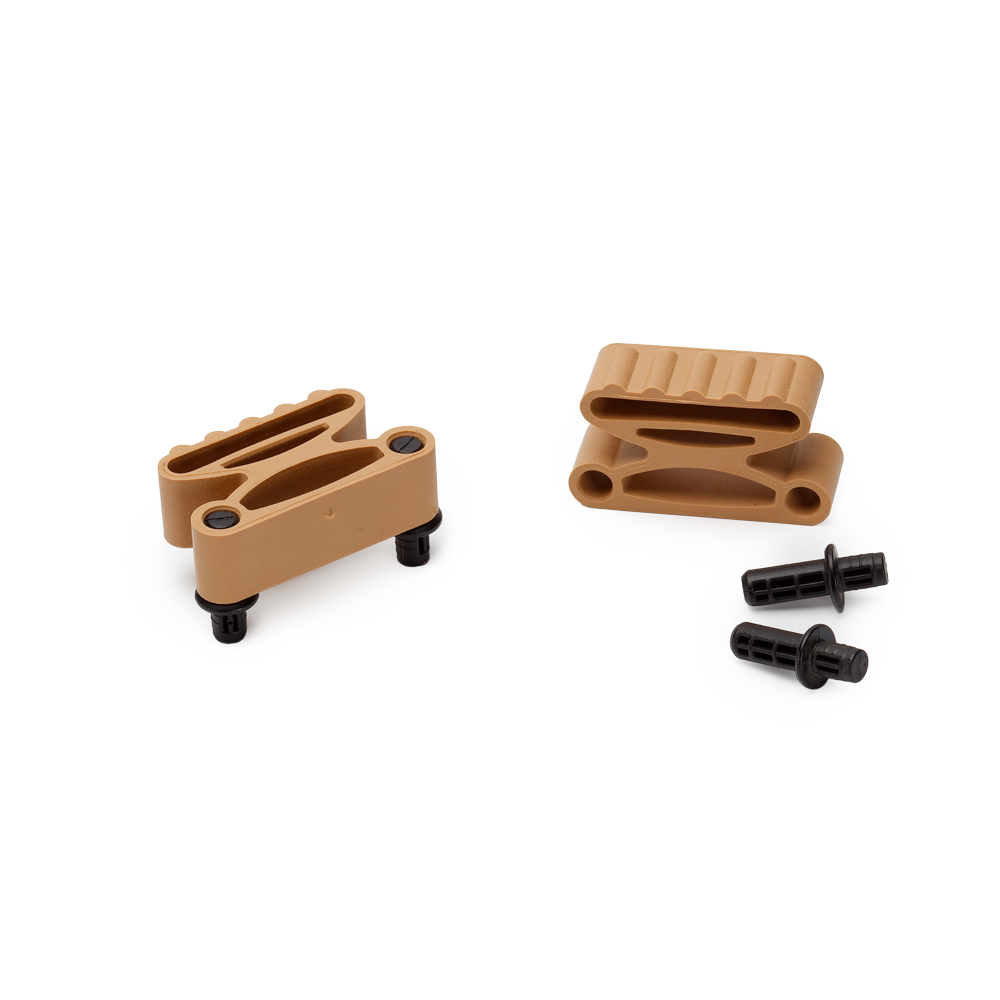

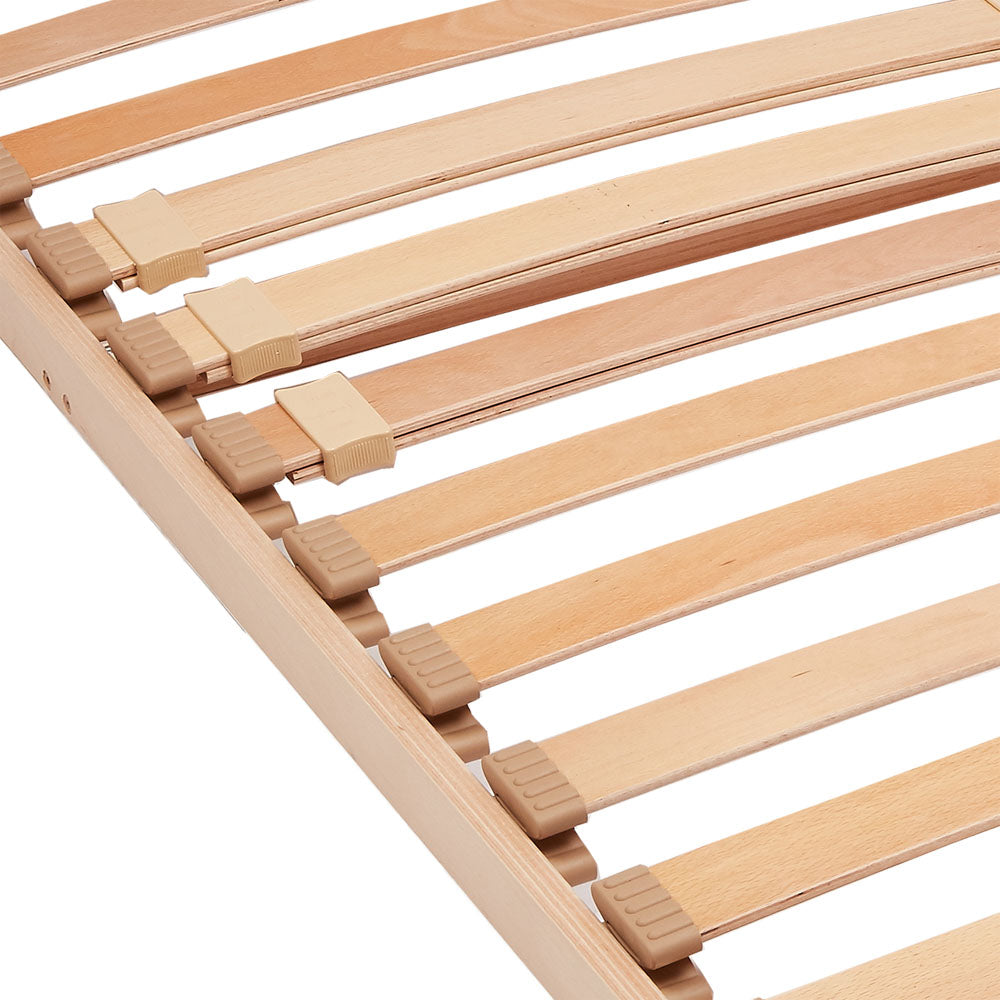

- Single Slat Holders, which are doweled into the side rails to add strength and durability
- OPTIONAL: Adjustable slat tension adjusters in the lumbar region
- Fully Assembled in 1 or 2 pieces when delivered

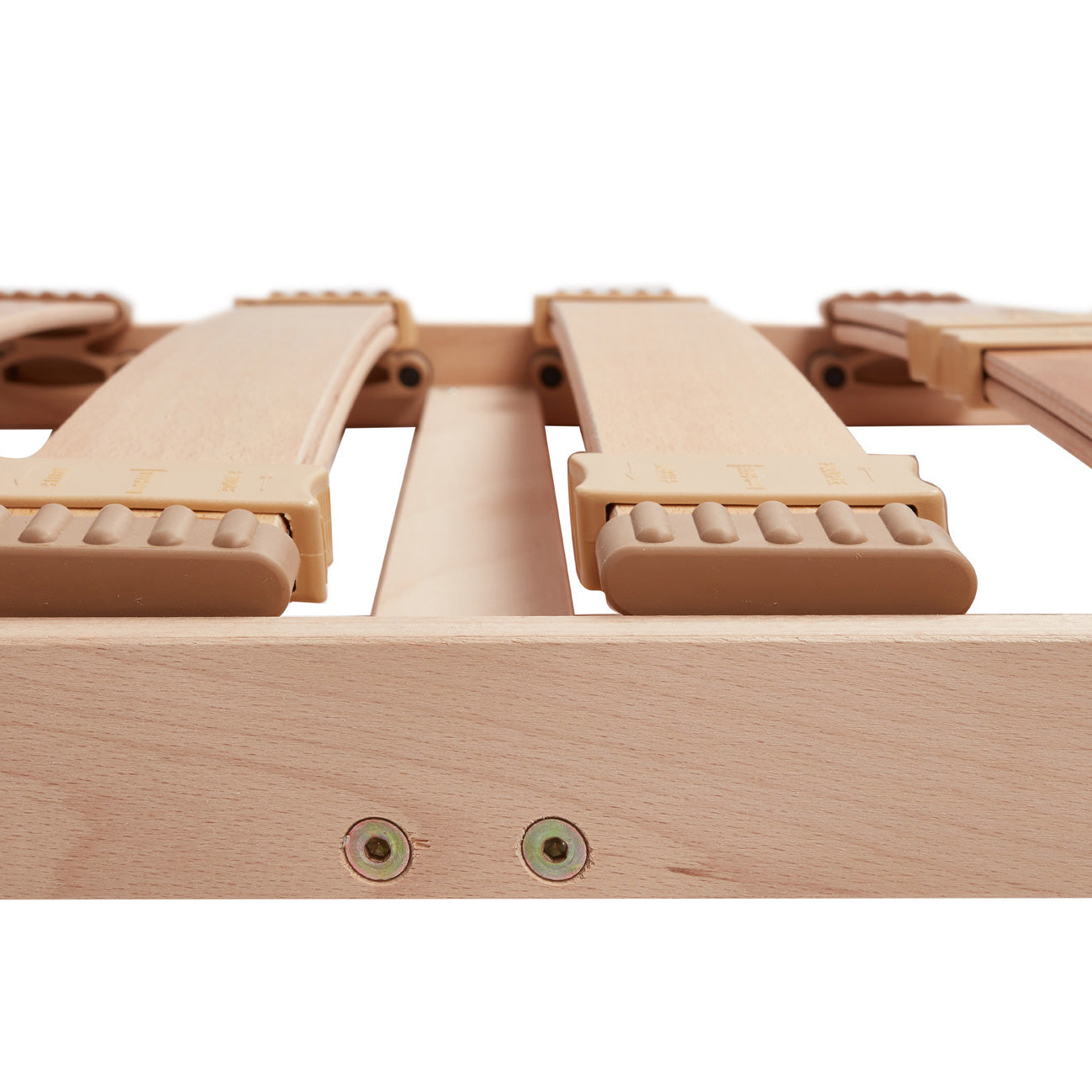

All Slatted Bed Bases are assembled using Furniture Connector bolts and Cross Dowels. This provides a extremely strong joint and can also be disassembled and reassembled if needed

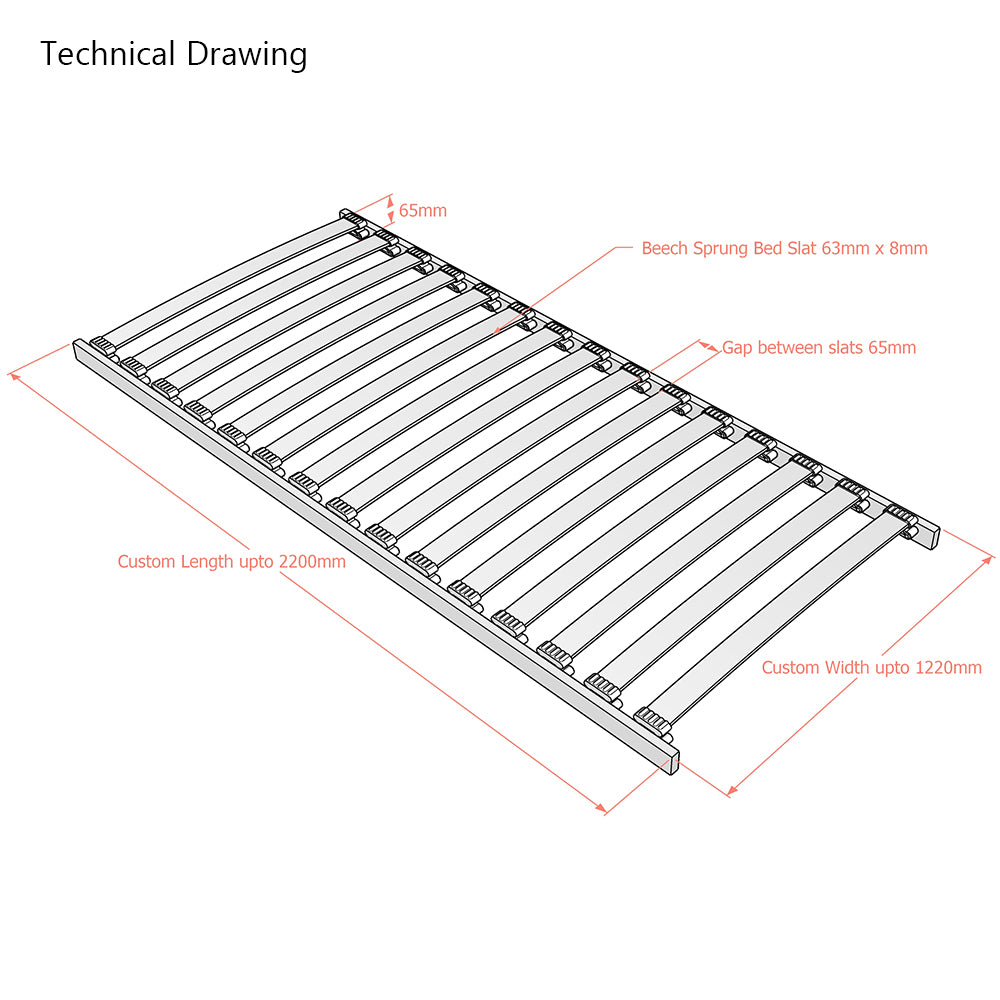

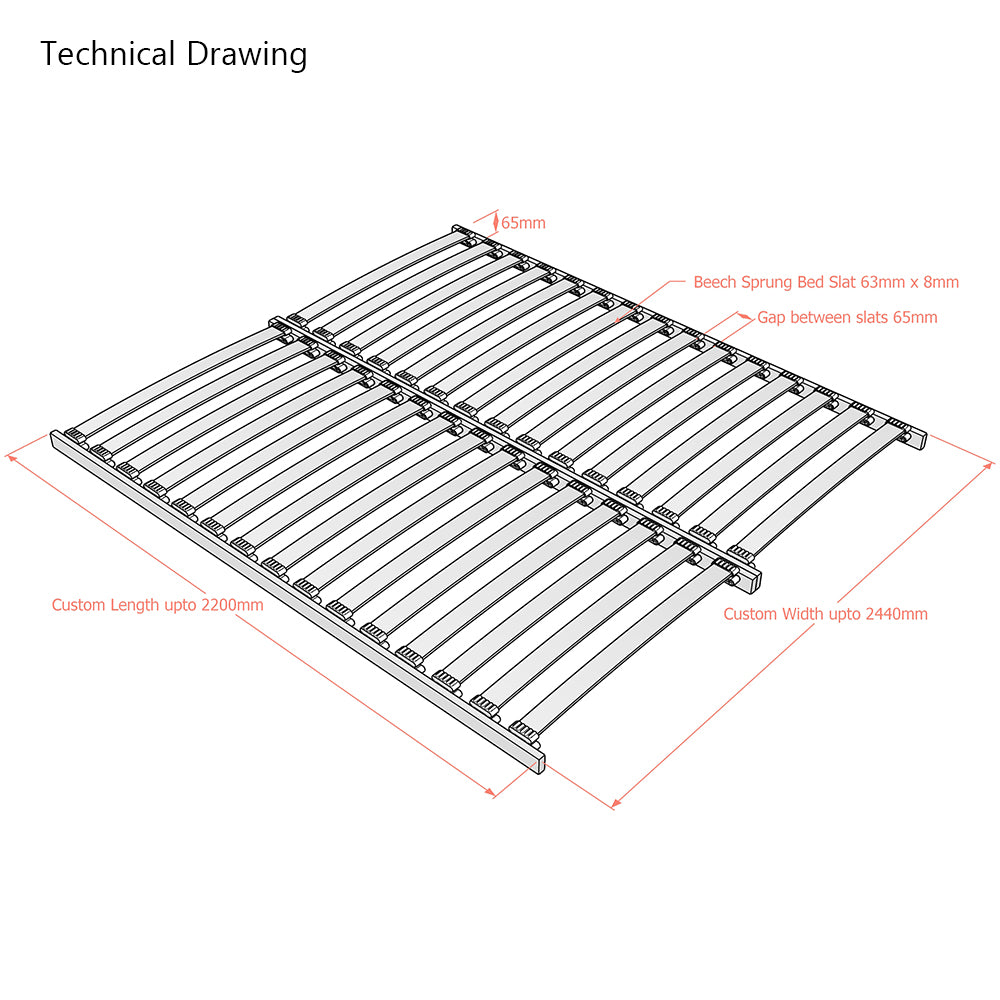

Technical Information:
Width - Custom
Length - Custom (Maximum 2000mm)
Height - Approximately 65mm
Gap in between Slats - Approximately 65mm
Optional Extras

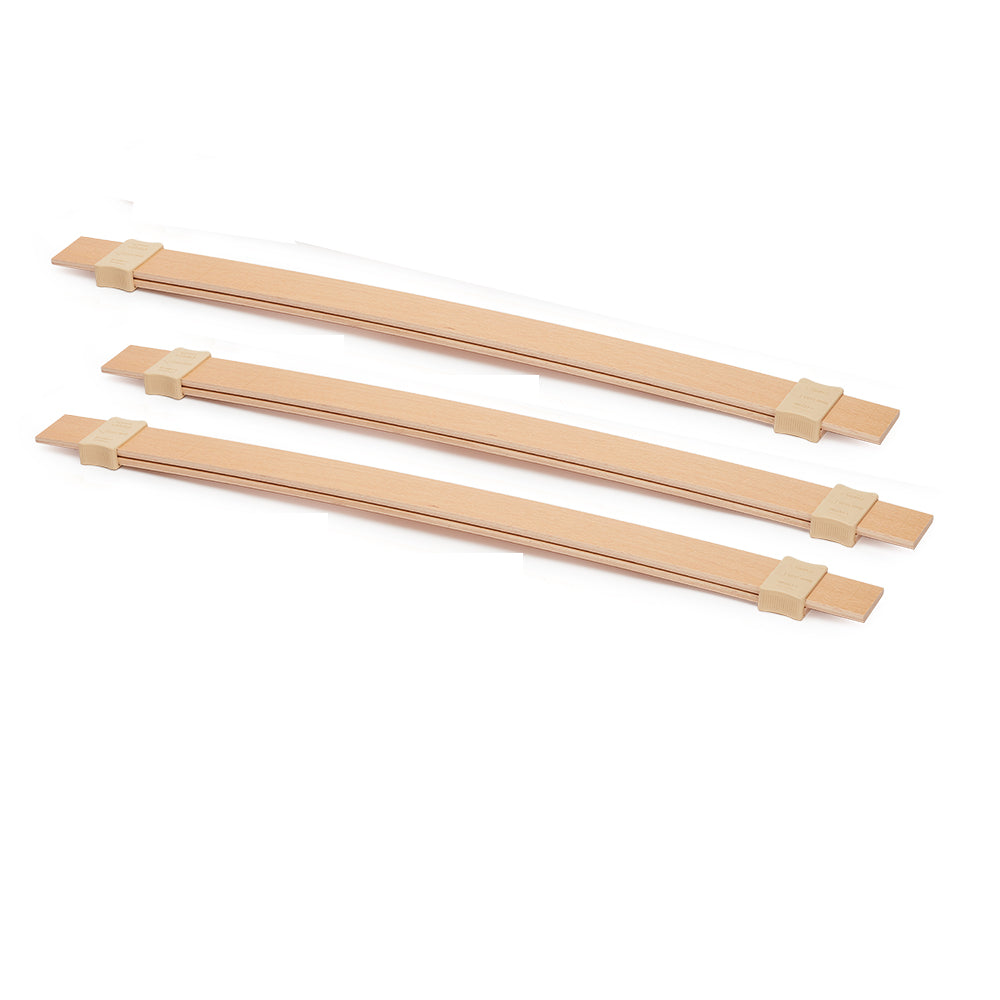

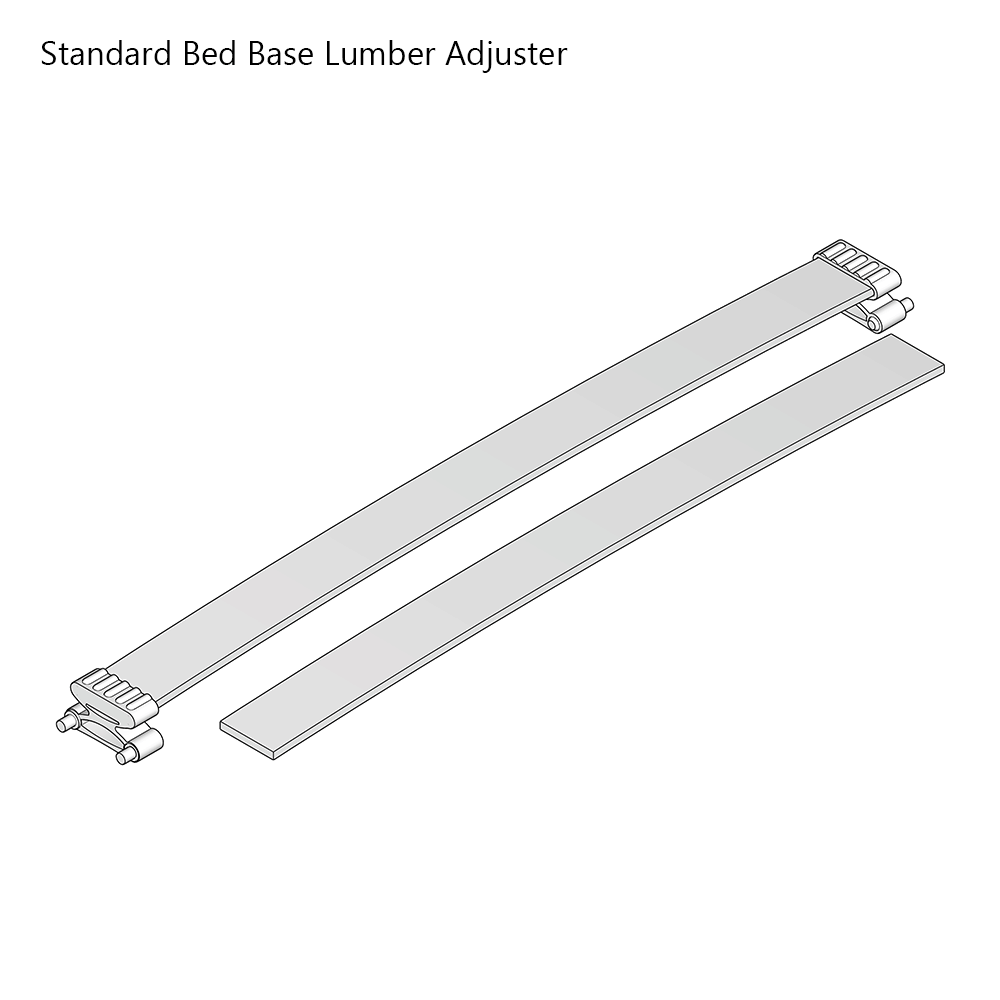

Lumber Adjusters
Our Standard adjustable tensions adjusters are placed in the lumber region to further improve your comfort level. These are also known as “rigidity adjusters”.
There are two beech sprung slats per single slat holder. These tension adjusters are placed in the lumber region, allowing the sleeper to manually adjust the firmness of their bed to their preference.

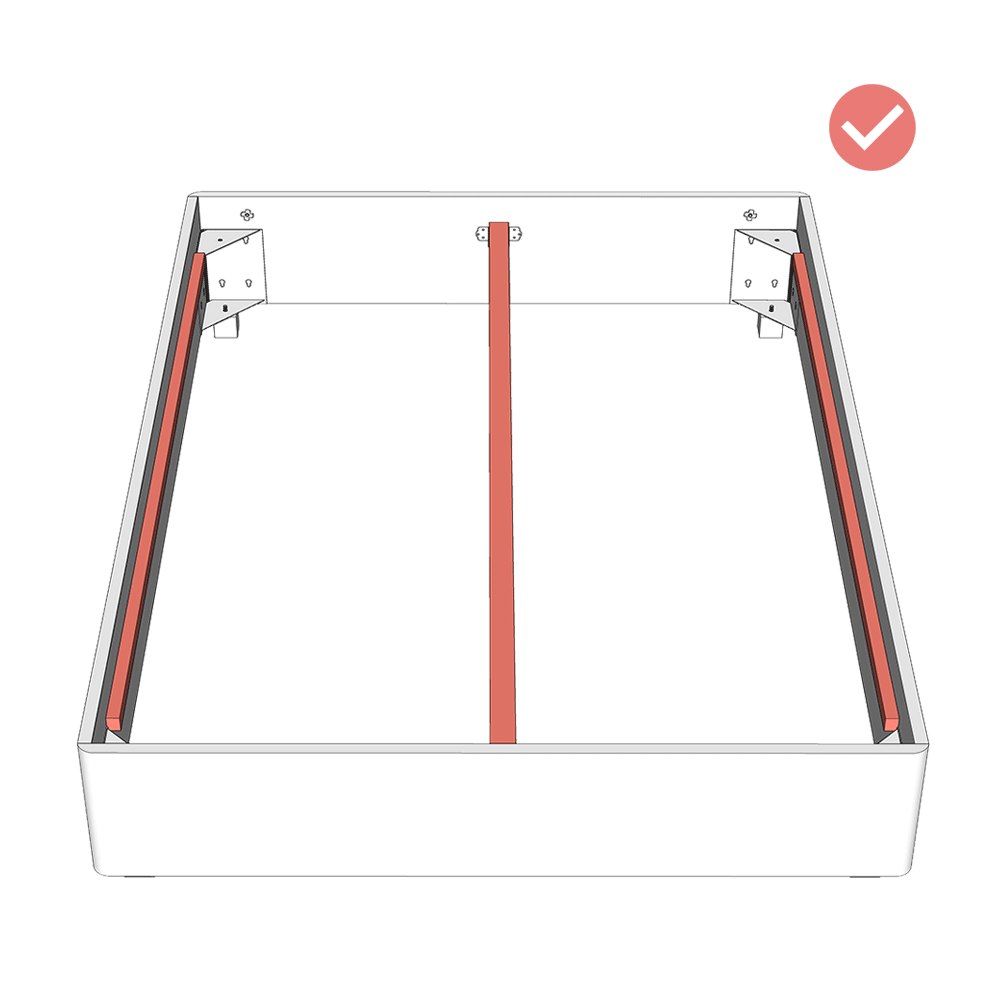

Bed Frame Requirements
Our Slatted Bed Bases are built to last for years. Your bed frame must have adequate support for the slatted bed base.
The slatted bed base is there to support you and the bed frame needs to support the slatted bed base i.e. the ledges, where the slatted bases rests on should be strong enough to hold your weight.
A Centre Rail is not required for a Single Row Bed Base but is require for Dual Row

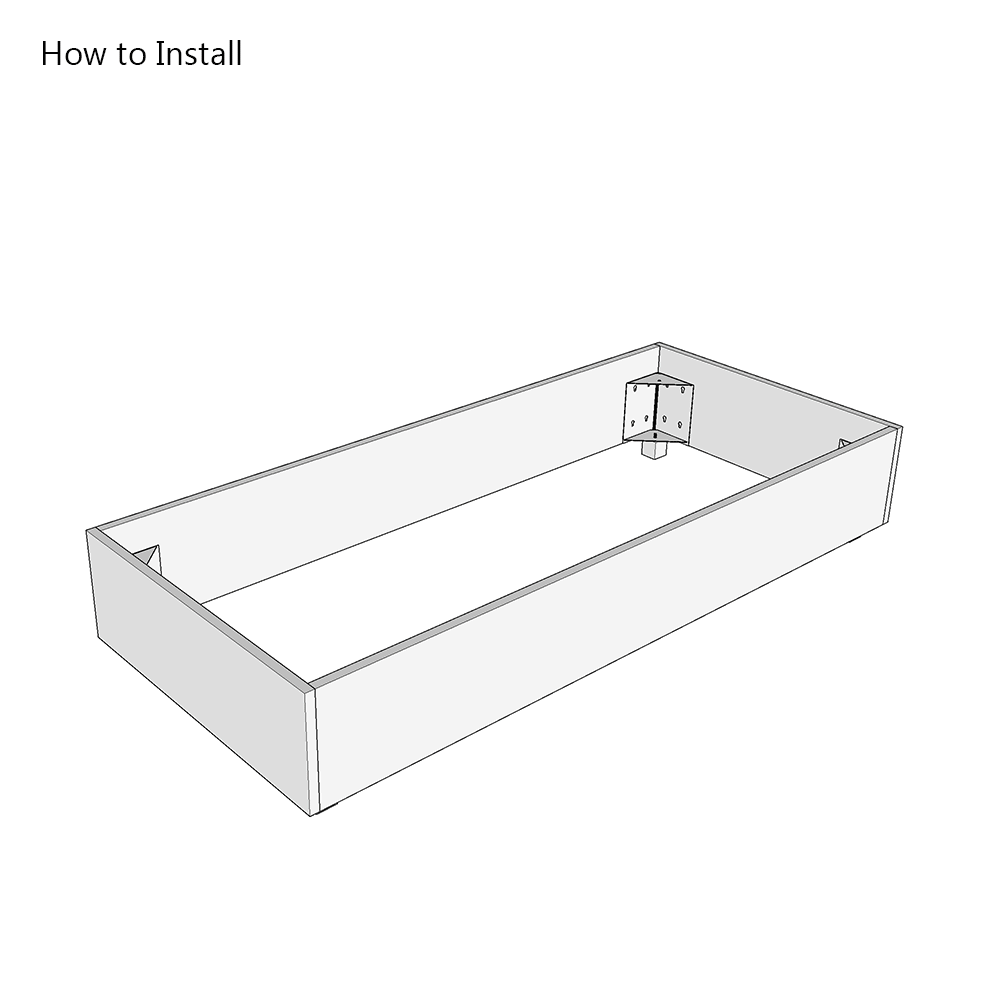

How to Measure
Wooden Bed Frame
Our Single Row Slatted Bed Bases are designed to sit within you wooden bed frame. You must take accurate measurements on the internal dimension of your bed frame; taking into account anything that is protruding e.g. bed legs, corner brackets and so on
We advise taking exact internal measurements and minus 3mm to 4mm to ensure our bed base fittings within your bed frame.
Metal Bed Frames
Varies depending on the structure of Metal Bed Frame. Please email us images if you would like advise on compatibility
Other
Please note that the colour of the components may vary, for exact colours please call us.
