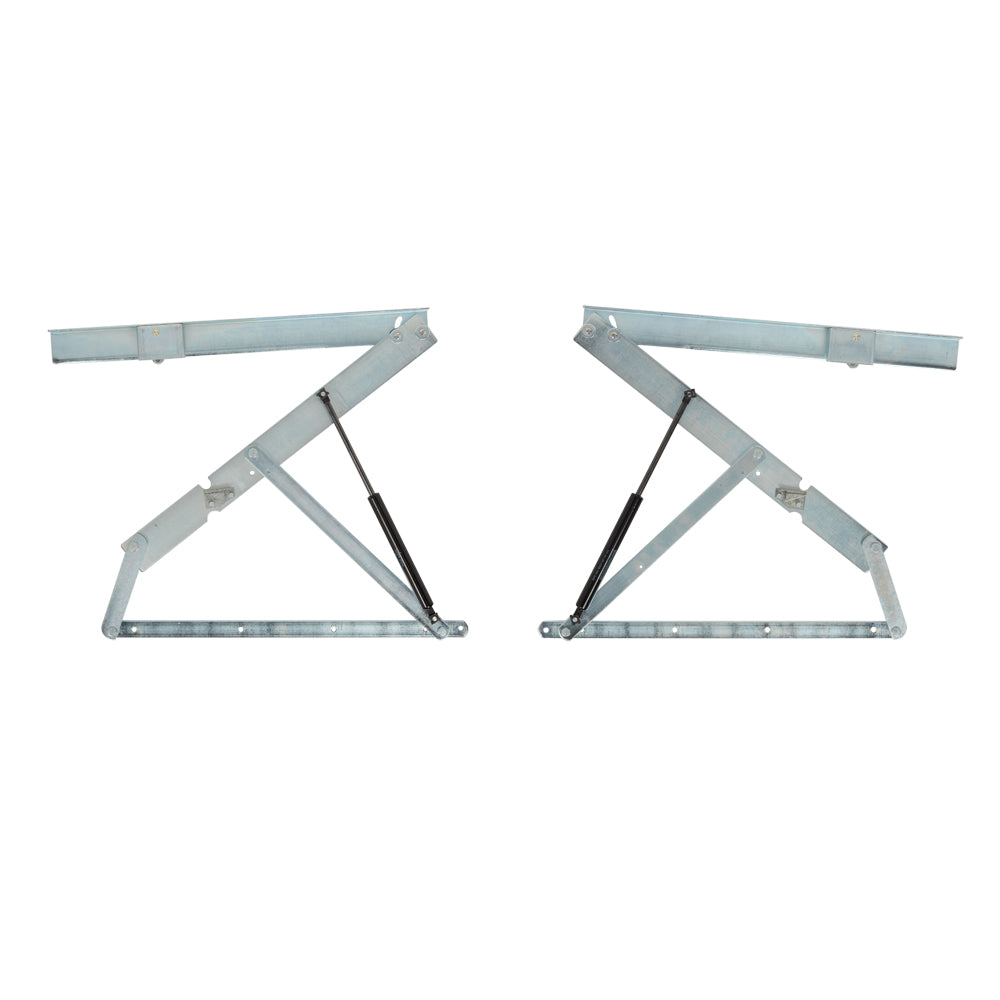

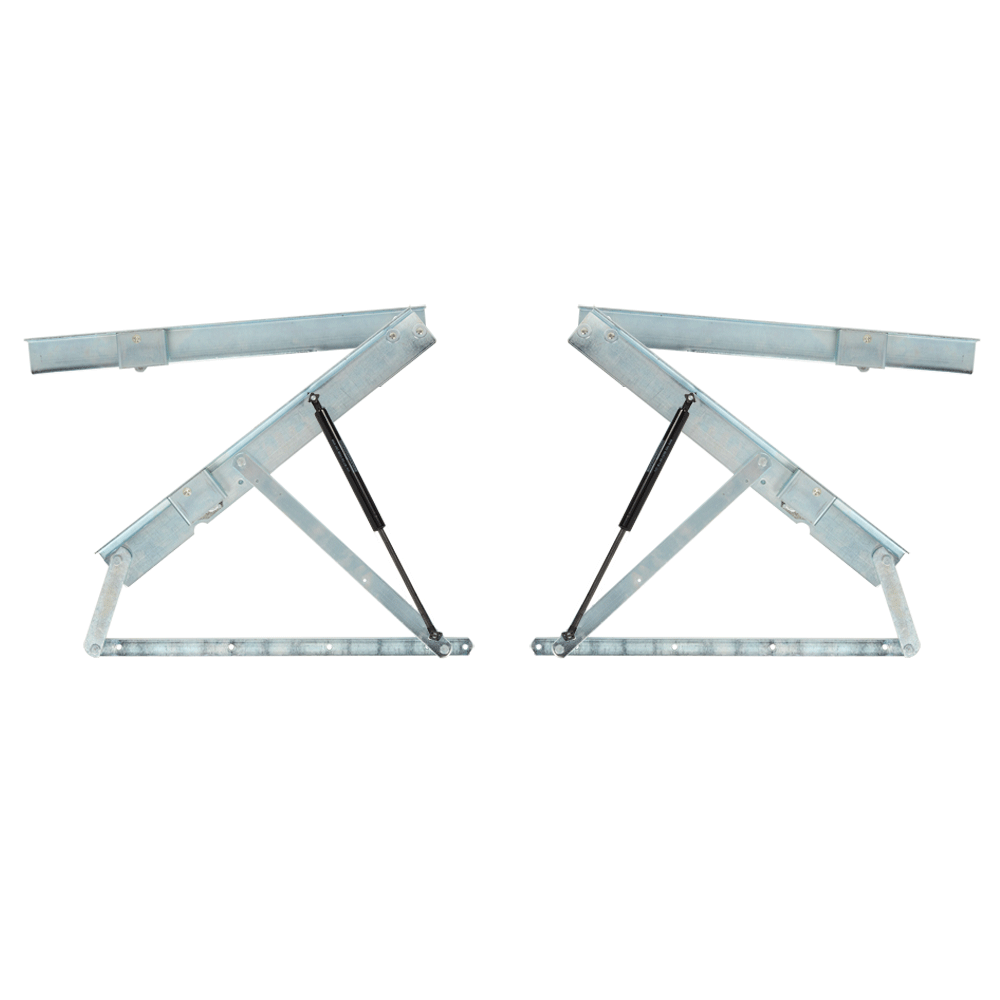

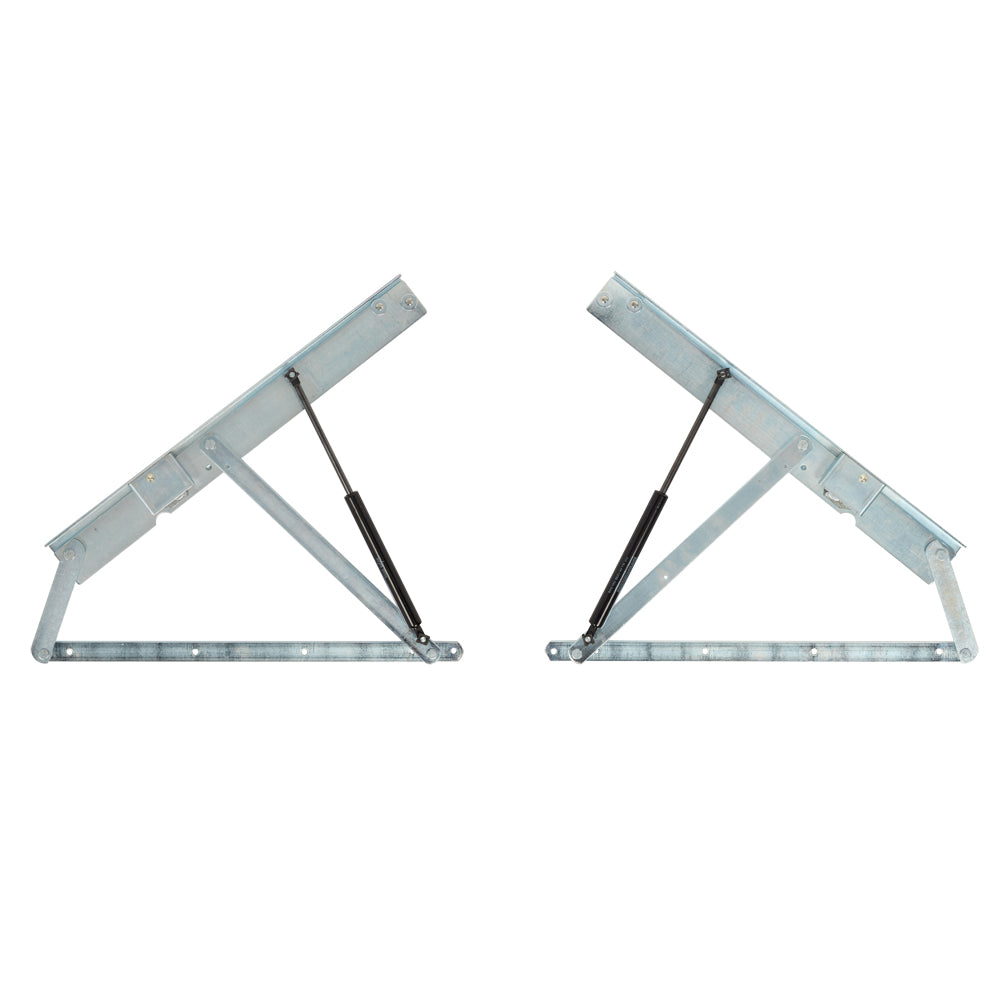

Platinum Ottoman/ Storage Bed Lift Up Hinge Mechanism with Gas Struts

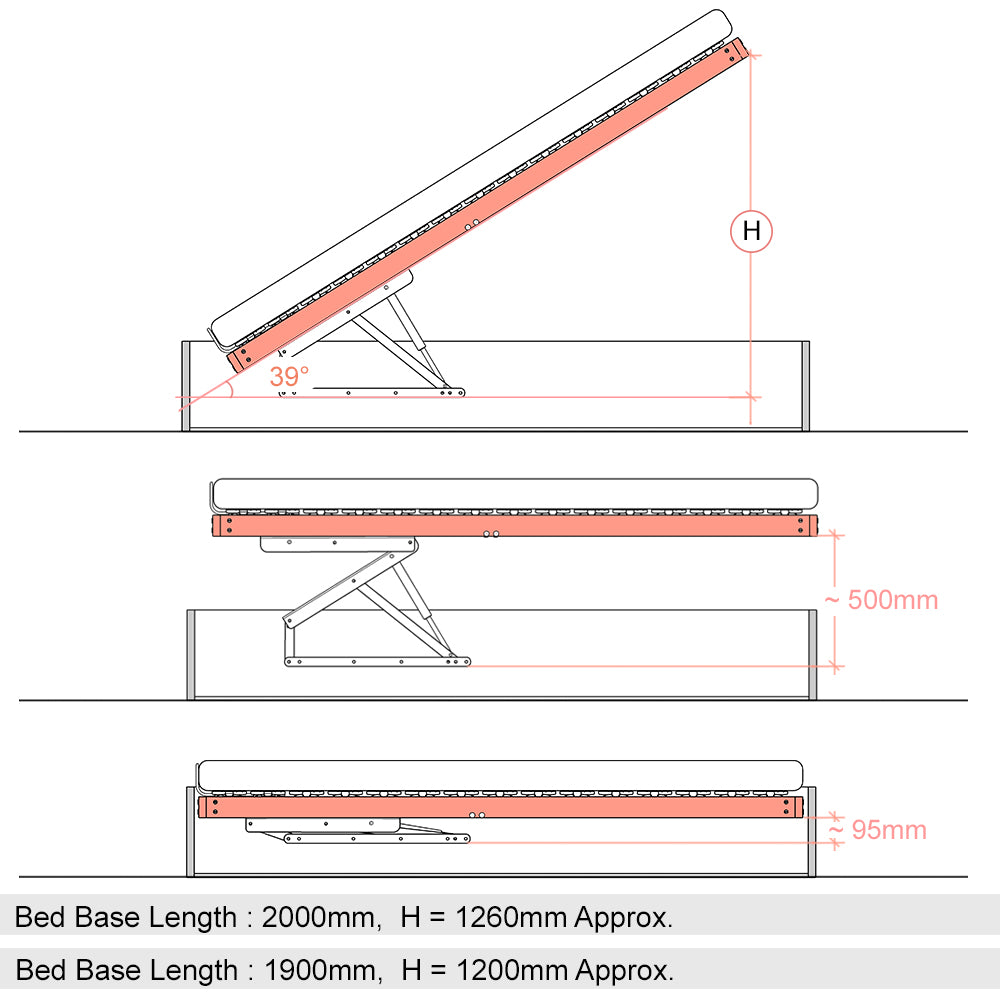

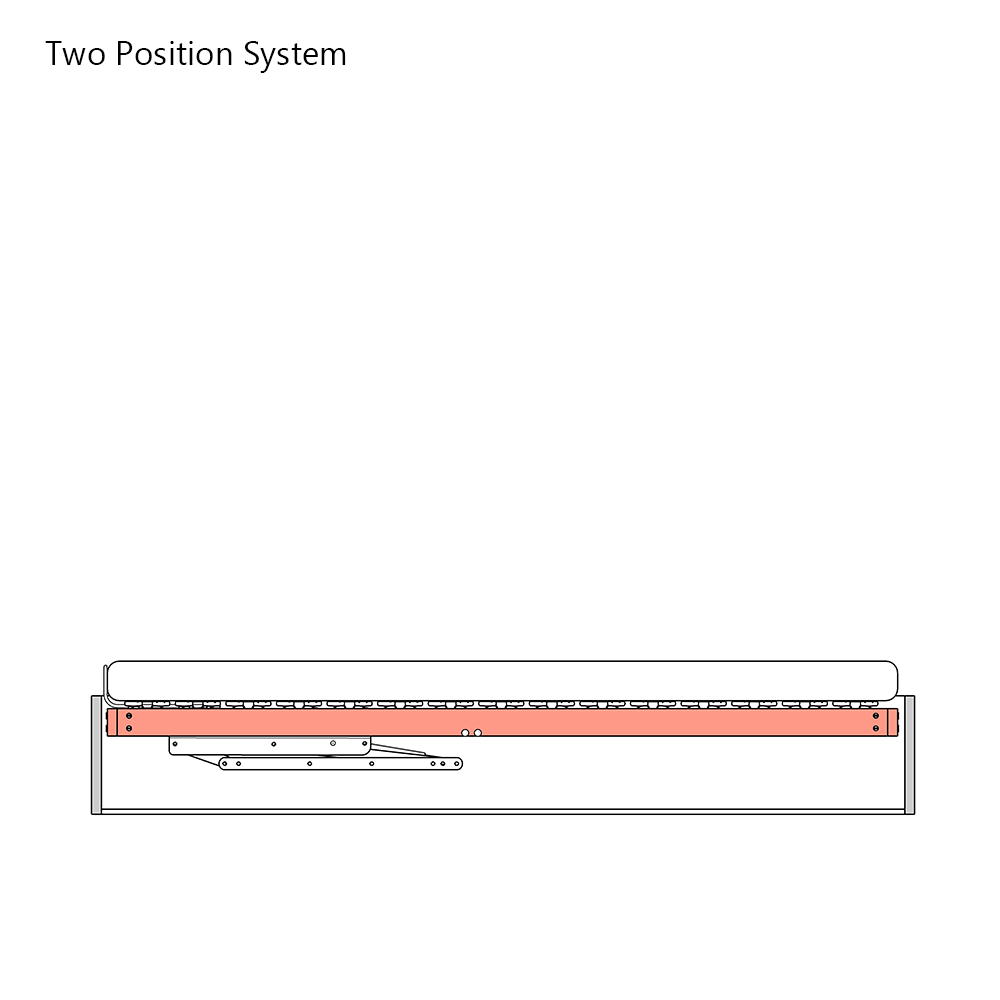

Our Platinum Ottoman Hinge offer a Two Positions Lift-Up. The Mechanism will first move to a standard lift position (approximately 30 degrees), then can also move to a horizonal position if desired
The Horizonal Position makes this Bed Hinge different compared to our Premium Ottoman Hinge. There are two advantages of having the bed base in the horizonal position:
- Ideal to storage and access belonging at the back of the bed frame
- Ideal for changing bedding and reducing back strain
We stock a great range of Gas Struts that are each capable of delivering different forces; ideal for all bed sizes
They are ideal for both contract and residential Customers
These Ottoman hinges are Ideal for all bed sizes including all UK and European sizes. Depending on the size of the bed you have, you can decide whether you want to use one set of bed hinge mechanisms or two sets of bed hinge mechanisms
We recommend One bed hinge mechanism Set for beds up to 1400mm. Two Bed hinge mechanism Sets for beds over 1400mm; you can use one set; however, two sets give a more stable and gives you more options for gas struts.
The Ottoman Hinge are manufactured in Italy and the Gas Struts are manufactured in Germany. These are premium products; compared to other alternatives available in the UK market.
** Please Note: These hinges are not suitable for side opening beds that are smaller then a standard UK king (1500mm x 2000mm)
** Position 2 is only attainable via weight leverage.
Gas Struts Recommendation
The gas struts required will vary depending on
- Bed Size
- End Opening or Side Opening
- Lift Up Bed Base Construction (Slats or Sheet Material)
- Location of Hinge Mechanism
- Weigh of Mattress
It is extremely difficult to advise which strength gas strut you will
require for your bed.
When we refer Light and Heavy Below; we are referring to the Bed Base and Mattress. Manufacturing a bed base from sheet material would be classed as heavy and slats will be classed as light.
Small Single 2ft 6 and Small Single 3ft
Side Opening – Light 300N | Heavy 400N
End Opening - Light 400N | Heavy 500N
Small Double 4ft & Double 4ft 6
Side Opening – Light 400N | Heavy 500N
End Opening - Light 700N | Heavy 1000N
King 5ft
One Set
Side Opening – Light 700N | Heavy 1000N
End Opening - Light 1000N | Heavy 1250N
Two Set
End Opening - Light 400N | Heavy 500N
Super King 6ft
One Set
Side Opening – Light 700N | Heavy 1000N
End Opening - Light 1250N | Heavy 1750N
Two Set
End Opening - Light 500N | Heavy 700N
Its very much a case of trial and error, If you receive your order and you find that the gas struts are too strong or too weak, then you can send the struts back ( Keep actual ottoman mechanisms attach) and we can exchange them for you. You will need to pay for the delivery cost both ways.
IMPORTANT NOITICE
Our Ottoman Hinge Mechanism is ONLY recommended in manufacturing new bed frame.
You can use these for Exist Bed Ottoman Bed Frame; where you are replacing existing poor-quality lift-up Hinge Mechanism, or your existing hinges mechanism has broken. There are hundreds of ottoman bed manufacturer in the world, the attach holes on our Bed Hinge mechanism will not line up on the bed frame or bed base. You need to be prepared make new holes and make them work. It is never straight forward to replace these mechanisms unless you purchase them direct from the manufacturer of the bed frame.
